Nexperia
معرفی
دیود محافظ ESD یکطرفه 3.3 ولت 45 وات ظرفیت پایین با پکیج SOD-523

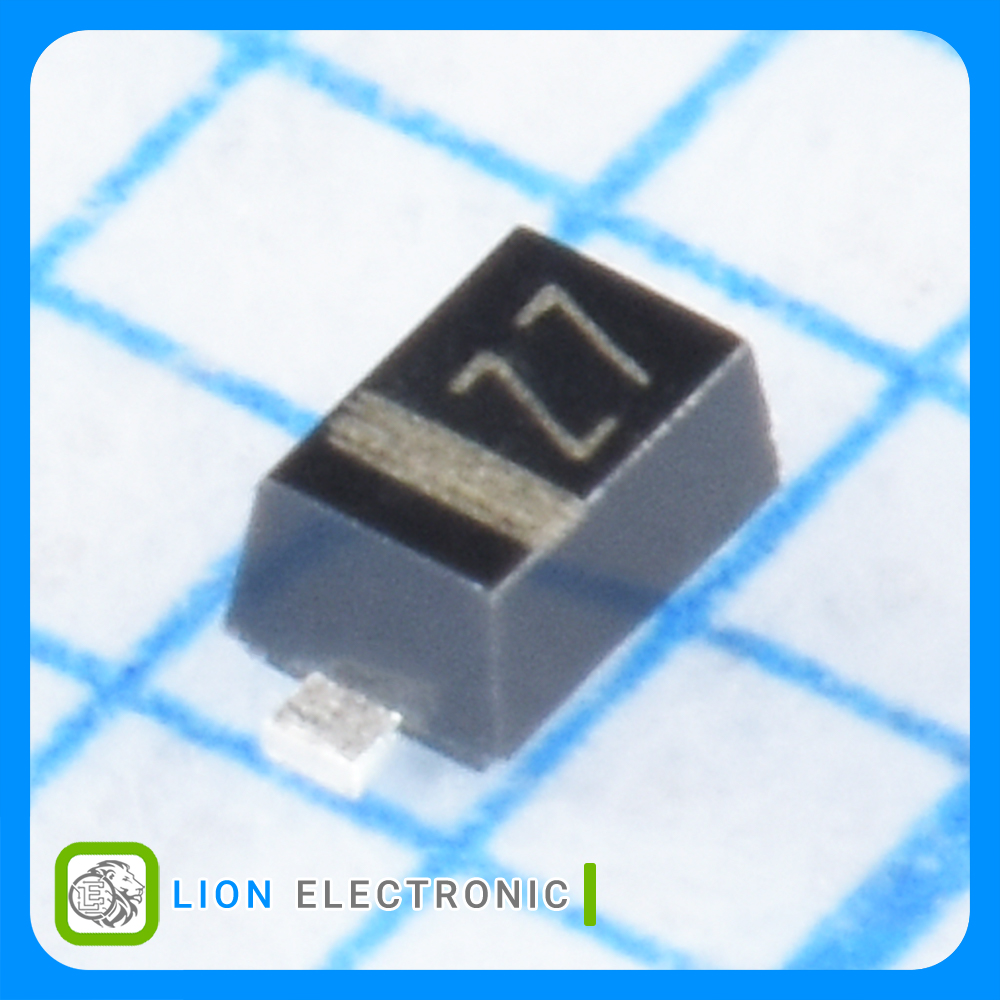

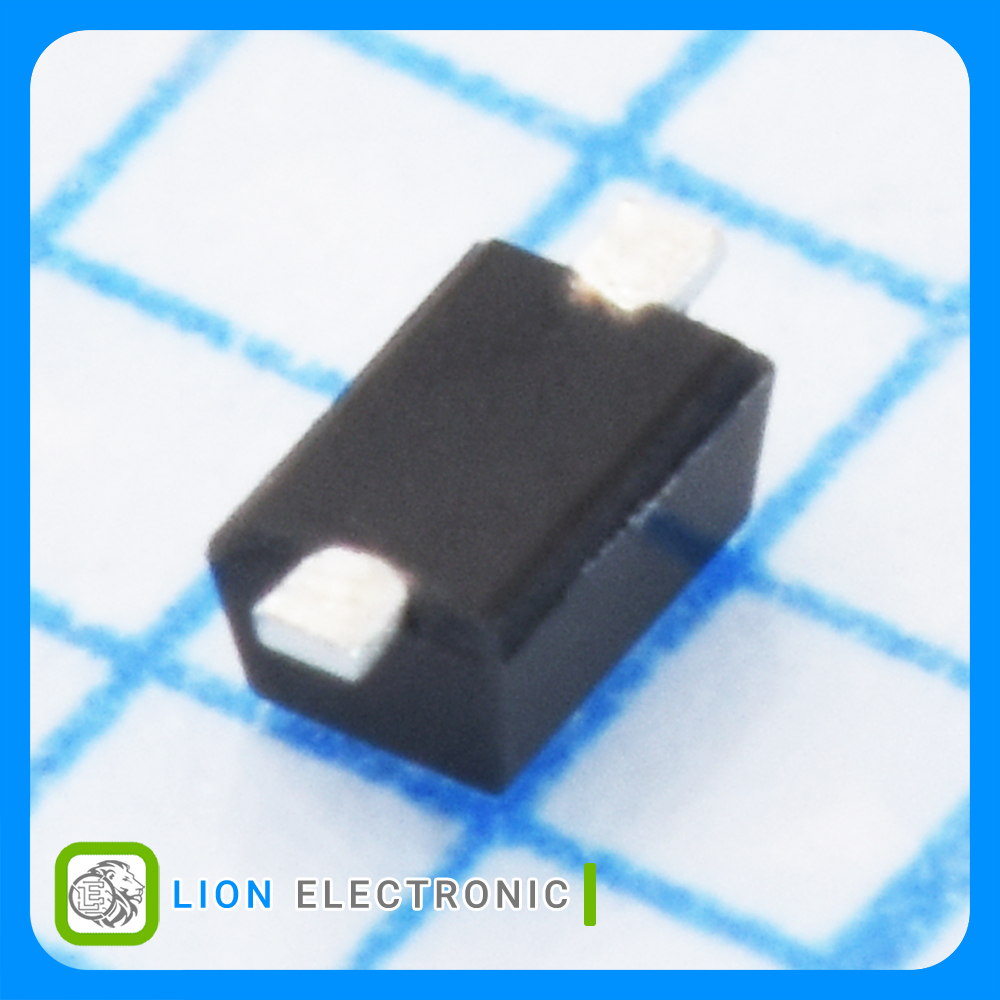

3.3V Low Capacitance Unidirectional ESD Protection Diode, 45W with SOD-523 Package
Specifications
- Product Type: ESD Suppressors
- Polarity: Unidirectional
- Number of Channels: 1
- Working Voltage: 3.3V
- Breakdown Voltage: 5.6V
- Clamping Voltage: 11V
- Pppm - Peak Pulse Power Dissipation: 45W
- Vesd - Voltage ESD Contact: 15kV
- Vesd - Voltage ESD Air Gap: 15kV
- Cd - Diode Capacitance: 34pF
- Ipp - Peak Pulse Current: 4.5A
- Termination style: SMD/SMT
- Package/Case: SOD-523
- Minimum Operating Temperature: -55C
- Maximum Operating Temperature: +150C
- Packaging: Reel
مشخصات دیود(TVS) PESD3V3L1UB,115
دیود(TVS) PESD3V3L1UB,115
Part Number
1
Number of Channels
3.3V
Working Voltage
15kV
Vesd - Voltage ESD Air Gap
-55C
Minimum Operating Temperature
15kV
Vesd - Voltage ESD Contact
45W
Pppm - Peak Pulse Power Dissipation
SMD/SMT
Termination style
Reel
Packaging
Unidirectional
Polarity
5.6V
Breakdown Voltage
11V
Clamping Voltage
4.5A
Ipp - Peak Pulse Current
+150C
Maximum Operating Temperature
ESD Suppressors
Product Type
34pF
Cd - Diode Capacitance
SOD-523
Package-Case
