SMAJ58CA
SMAJ58CA
Part Number
5952
Lion Part
Datasheet
Littelfuse Manufacture
دیود TVS دو جهته 58 ولت 400 وات با بیشینه پالس جریان 4.3 آمپر با پکیج DO-214AC (SMA)

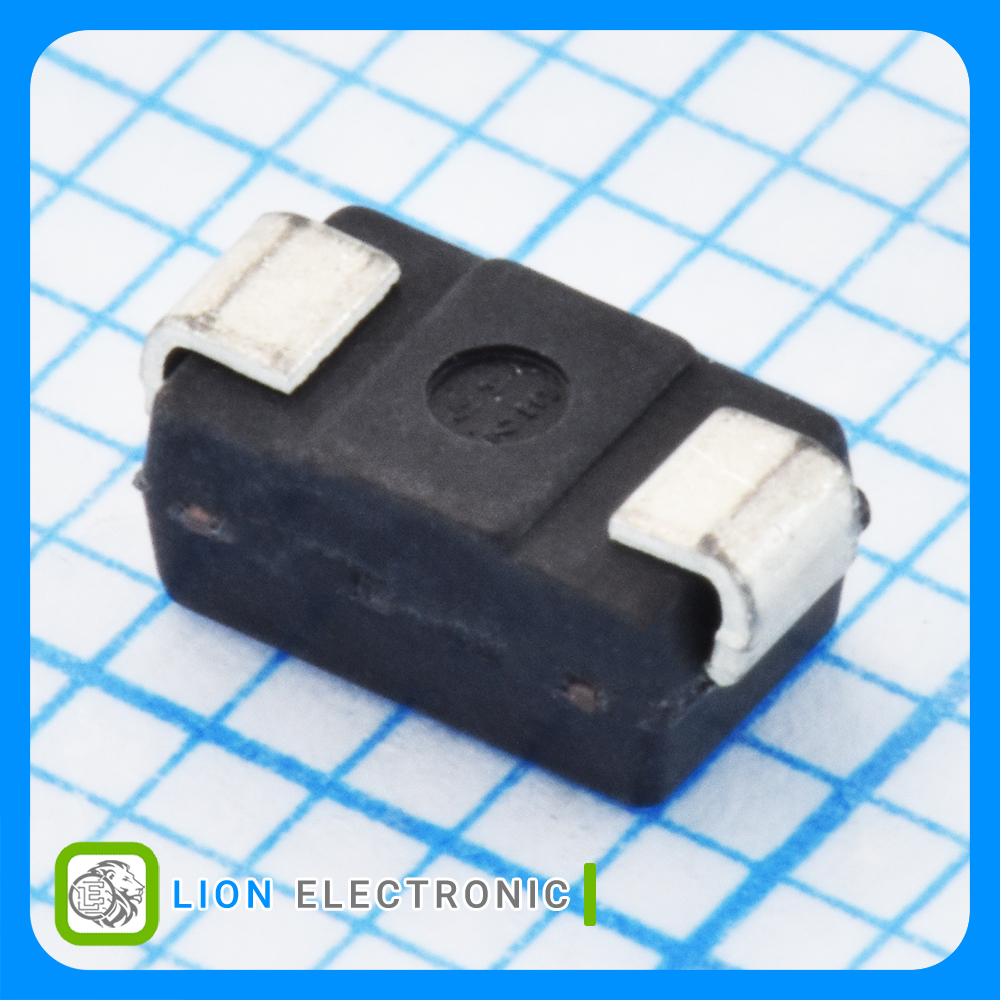

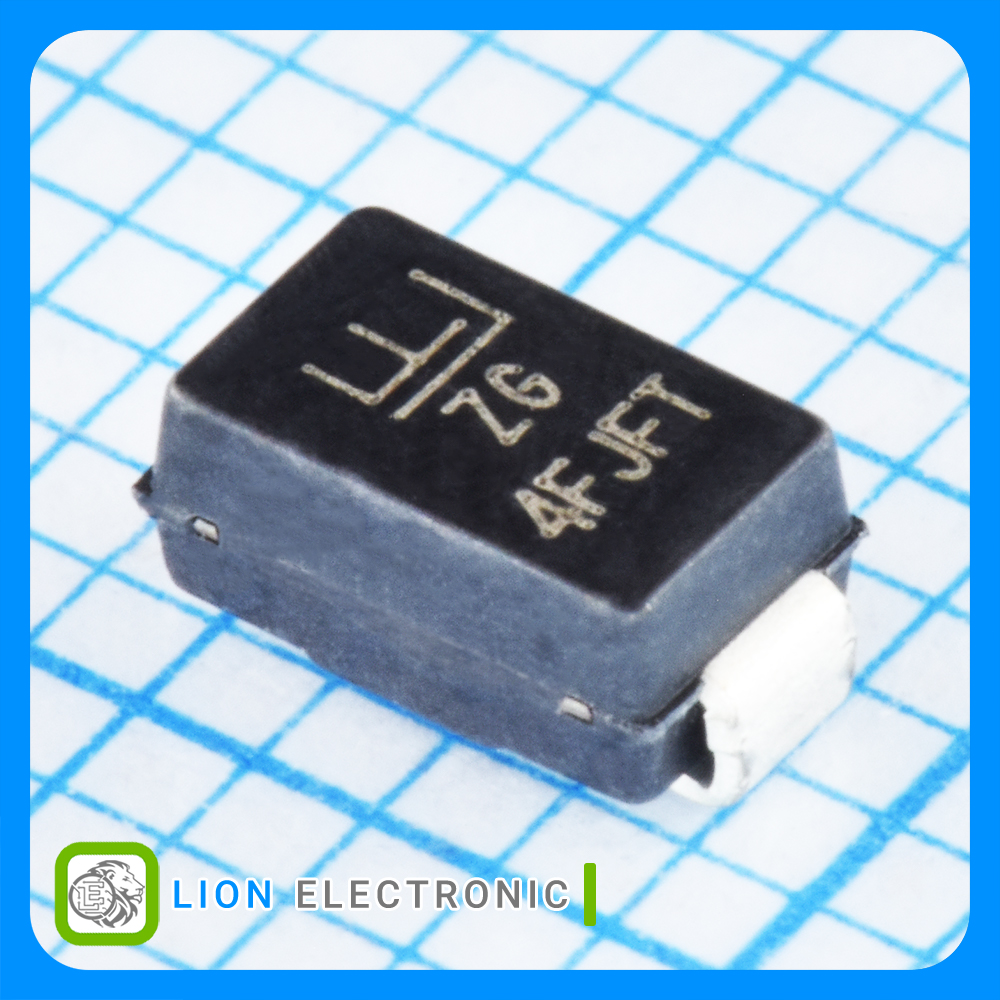

TVS Diode Bidirectional 58V, 400W, 4.3A Peak Pulse Current with DO-214AC (SMA) Package
معرفی
دیود TVS دو جهته 58 ولت 400 وات با بیشینه پالس جریان 4.3 آمپر با پکیج DO-214AC (SMA)
TVS Diode Bidirectional 58V, 400W, 4.3A Peak Pulse Current with DO-214AC (SMA) Package
Specifications
- Product Type: TVS Diodes
- Polarity: Bidirectional
- Number of Channels: 1
- Working Voltage: 58V
- Breakdown Voltage: 64.4V
- Clamping Voltage: 93.6V
- Pppm - Peak Pulse Power Dissipation: 400W
- Vesd - Voltage ESD Contact: 30kV
- Vesd - Voltage ESD Air Gap: 30kV
- Cd - Diode Capacitance: 0.05pF
- Ipp - Peak Pulse Current: 4.3A
- Termination style: SMD/SMT
- Package/Case: DO-214AC (SMA)
- Minimum Operating Temperature: -65C
- Maximum Operating Temperature: +150C
- Packaging: Reel
مشخصات SMAJ58CA
SMAJ58CA
Part Number
0.05pF
Cd - Diode Capacitance
1
Number of Channels
Bidirectional
Polarity
-65C
Minimum Operating Temperature
30kV
Vesd - Voltage ESD Air Gap
SMD/SMT
Termination style
Reel
Packaging
30kV
Vesd - Voltage ESD Contact
400W
Pppm - Peak Pulse Power Dissipation
4.3A
Ipp - Peak Pulse Current
+150C
Maximum Operating Temperature
58V
Working Voltage
93.6V
Clamping Voltage
64.4V
Breakdown Voltage
TVS Diodes
Product Type
DO-214AC (SMA)
Package-Case
