NUF8410MNT4G
NUF8410MNT4G
Part Number
6088
Lion Part
Datasheet
ON Semiconductor Manufacture
فیلتر EMI با 8 کانال با حفاظت ESD داخلی، ولتاژ کاری 5 ولت، ولتاژ شکست 7 ولت، با پکیج DFN-16

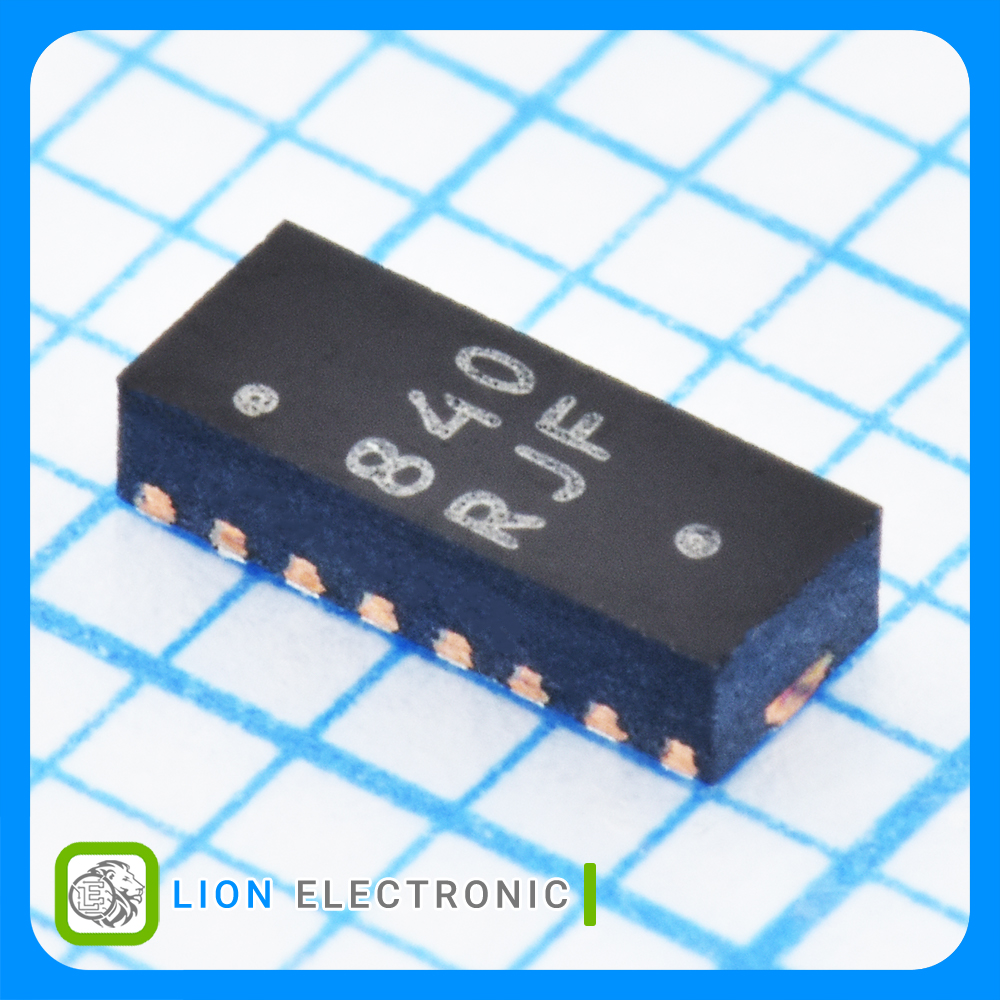

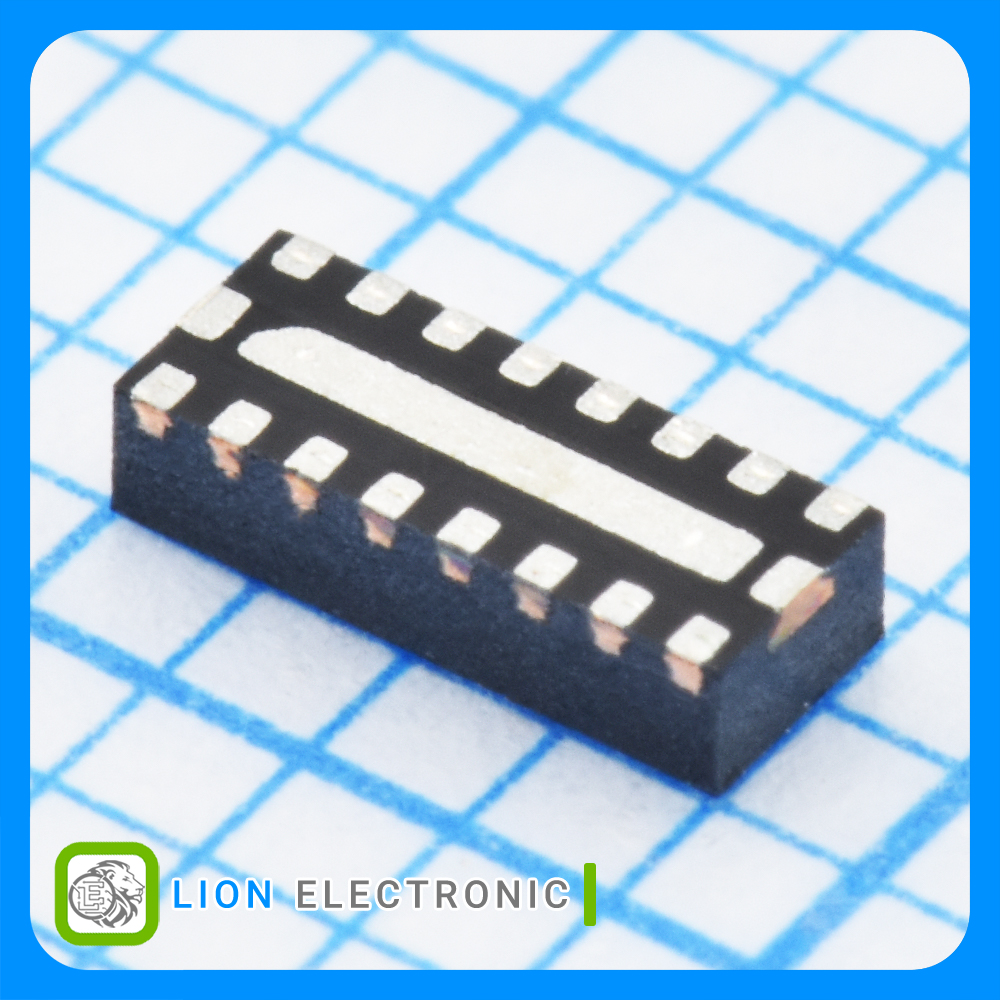

8-Channel EMI Filter with Integrated ESD Protection, 5V Working Voltage, 7V Breakdown Voltage, with DFN-16 Package
معرفی
فیلتر EMI با 8 کانال با حفاظت ESD داخلی، ولتاژ کاری 5 ولت، ولتاژ شکست 7 ولت، با پکیج DFN-16
8-Channel EMI Filter with Integrated ESD Protection, 5V Working Voltage, 7V Breakdown Voltage, with DFN-16 Package
Specifications
- Product Type: ESD Suppressors
- Polarity: No Isolation
- Number of Channels: 8
- Working Voltage: 5V
- Breakdown Voltage: 7V
- Vesd - Voltage ESD Contact: 8kV
- Vesd - Voltage ESD Air Gap: 15kV
- Cd - Diode Capacitance: 8.5pF
- Termination style: SMD/SMT
- Package/Case: DFN-16
- Minimum Operating Temperature: -40C
- Maximum Operating Temperature: +85C
- Packaging: Reel
مشخصات NUF8410MNT4G
NUF8410MNT4G
Part Number
8kV
Vesd - Voltage ESD Contact
15kV
Vesd - Voltage ESD Air Gap
5V
Working Voltage
No Isolation
Polarity
SMD/SMT
Termination style
Reel
Packaging
-40C
Minimum Operating Temperature
+85C
Maximum Operating Temperature
8
Number of Channels
8.5pF
Cd - Diode Capacitance
7V
Breakdown Voltage
N/A
Pppm - Peak Pulse Power Dissipation
ESD Suppressors
Product Type
N/A
Clamping Voltage
DFN-16
Package-Case
N/A
Ipp - Peak Pulse Current
