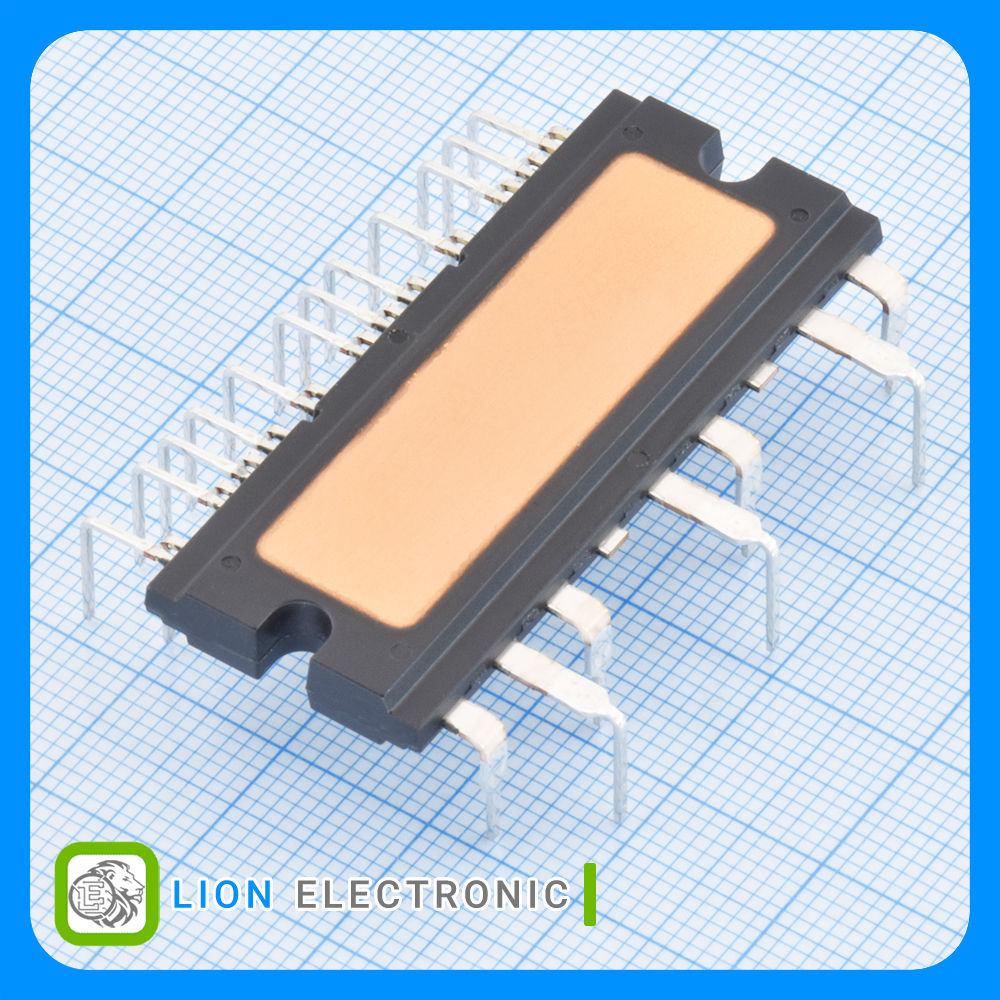

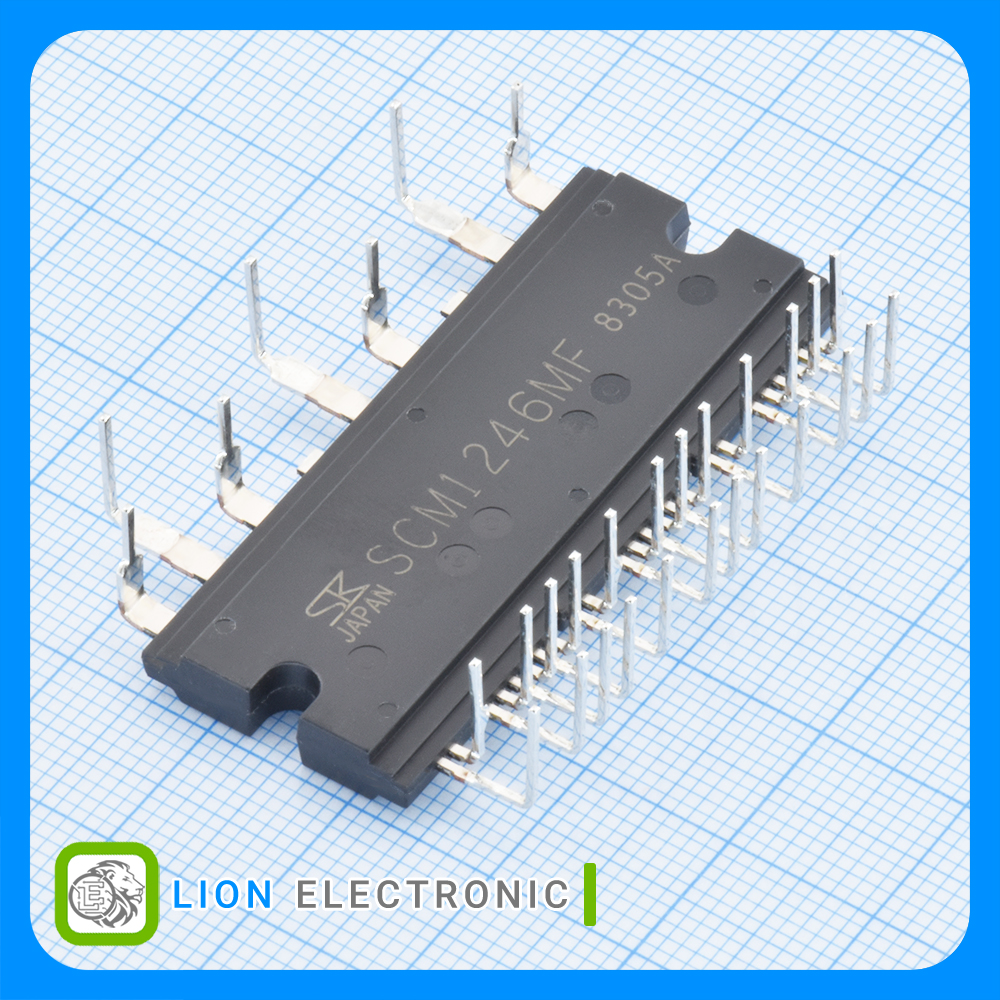

SCM1246MF
SCM1246MF
Part Number
900
Lion Part
Datasheet
Sanken Electric Manufacture
ماژول IGBT سه فاز 600 ولت 30 آمپر به همراه مدارات گیت درایور و محافظ با پکیج LF2552
3-Phase IGBT Module 600V, 30A with Integral Gate Drivers and Protection, High Voltage High Current 3-Phase Motor Driver with LF2552 Package
معرفی
ماژول IGBT سه فاز 600 ولت 30 آمپر به همراه مدارات گیت درایور و محافظ با پکیج LF2552
3-Phase IGBT Module 600V, 30A with Integral Gate Drivers and Protection, High Voltage High Current 3-Phase Motor Driver with LF2552 Package
Specifications
- Product: Fan / Motor Controllers / Drivers
- Configuration: 3-Phase
- Collector - Emitter Voltage VCEO Max: 600V
- Collector - Emitter Saturation Voltage: 1.7V
- Continuous Collector Current aT 25 c: 30A
- Gate - Emitter Leakage Current: 1mA
- Package/Case: LF2552
- Minimum Operating Temperature: -20C
- Maximum Operating Temperature: +100C
- Packaging: Tube

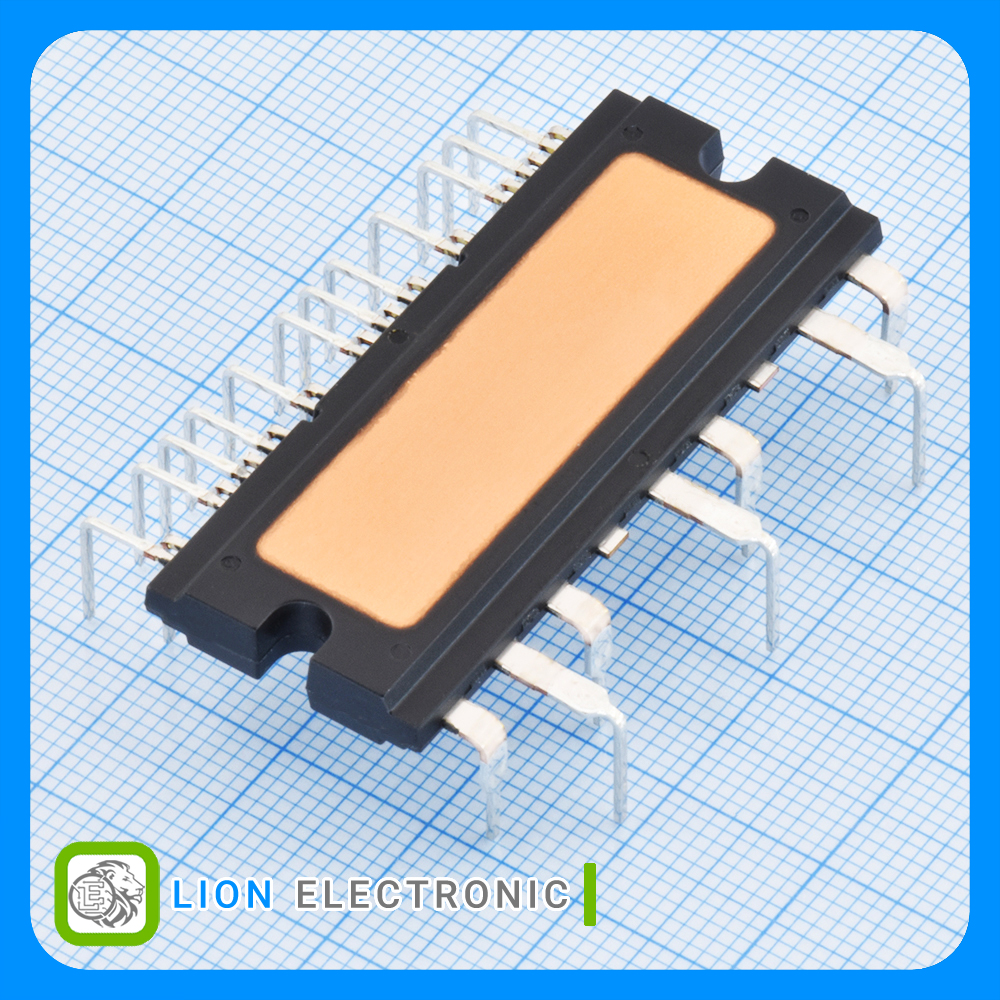

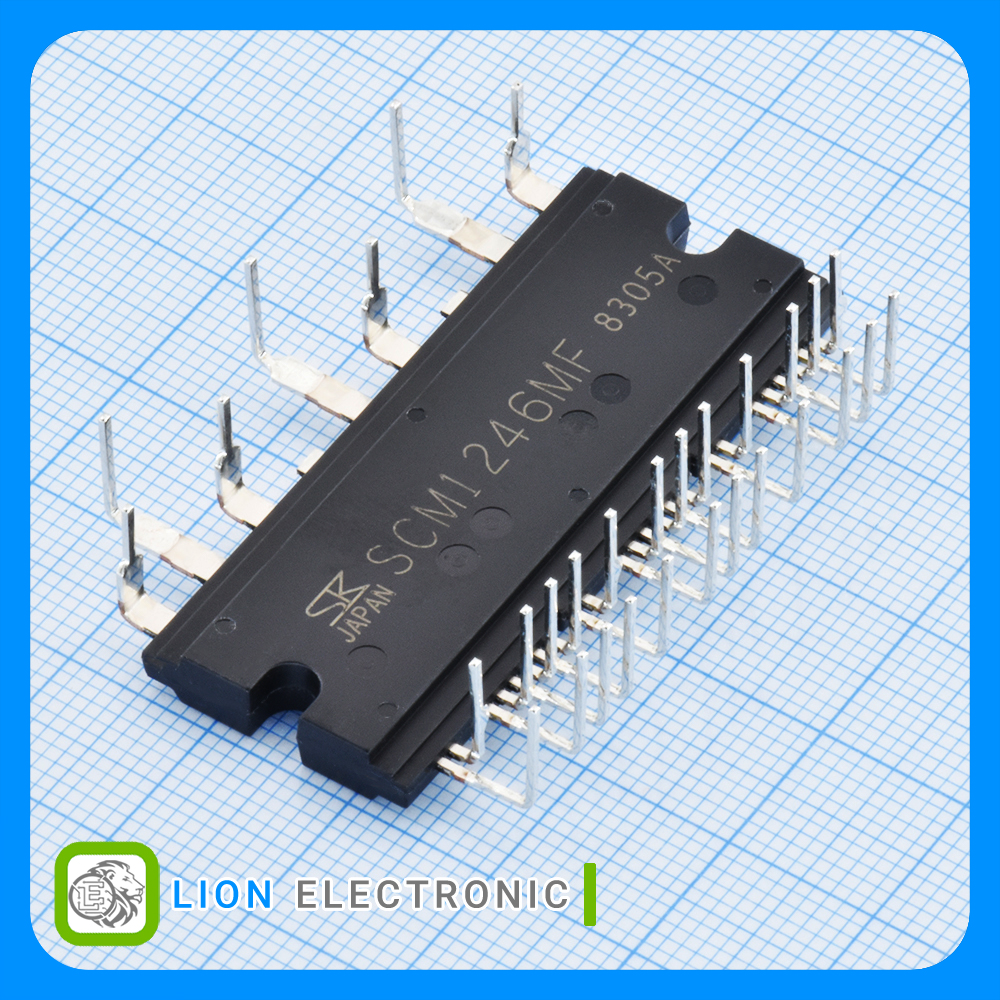

مشخصات ماژول IGBT سه فاز SCM1246MF
ماژول IGBT سه فاز SCM1246MF
Part Number
1mA
Gate - Emitter Leakage Current
30A
Continuous Collector Current aT 25 c
Tube
Packaging
-20C
Minimum Operating Temperature
3-Phase
Configuration
+100C
Maximum Operating Temperature
1.7V
Collector - Emitter Saturation Voltage
600V
Collector - Emitter Voltage VCEO Max
Fan / Motor Controllers / Drivers
Product
LF2552
Package-Case
N/A
Pd - Power Dissipation
