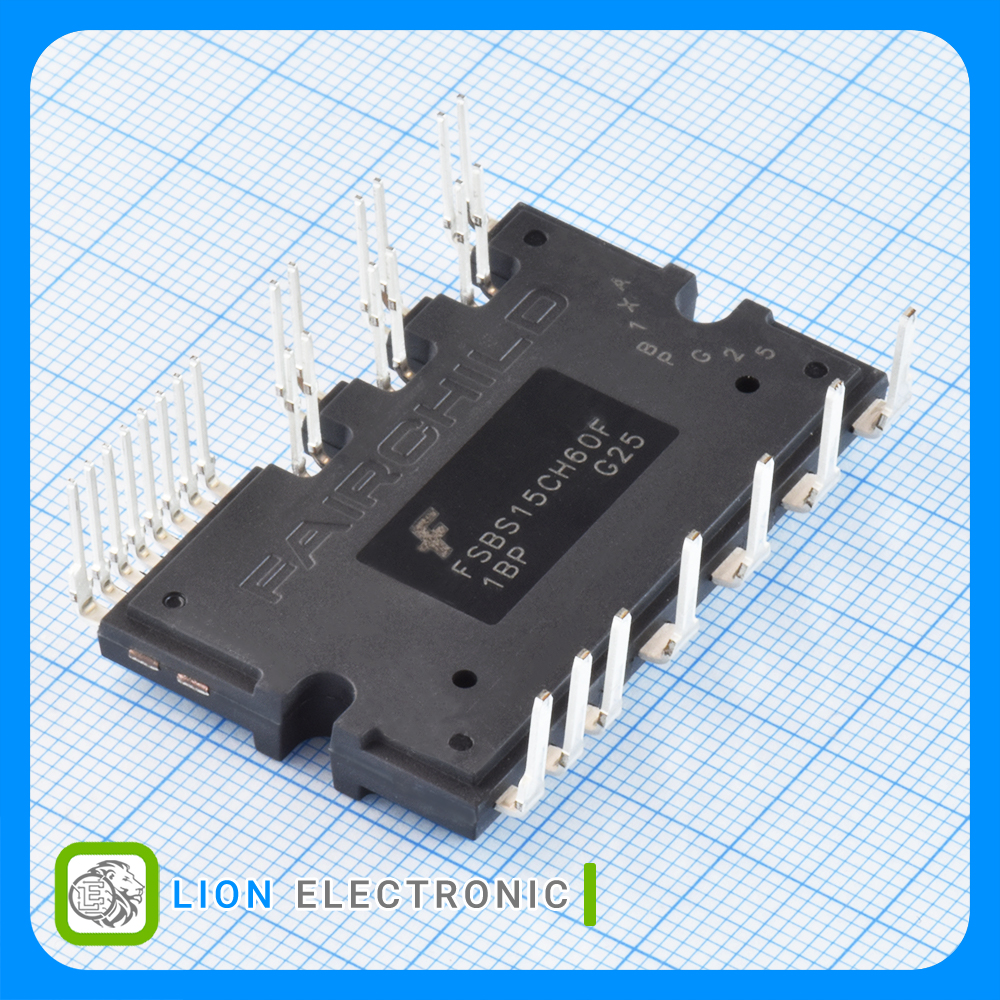

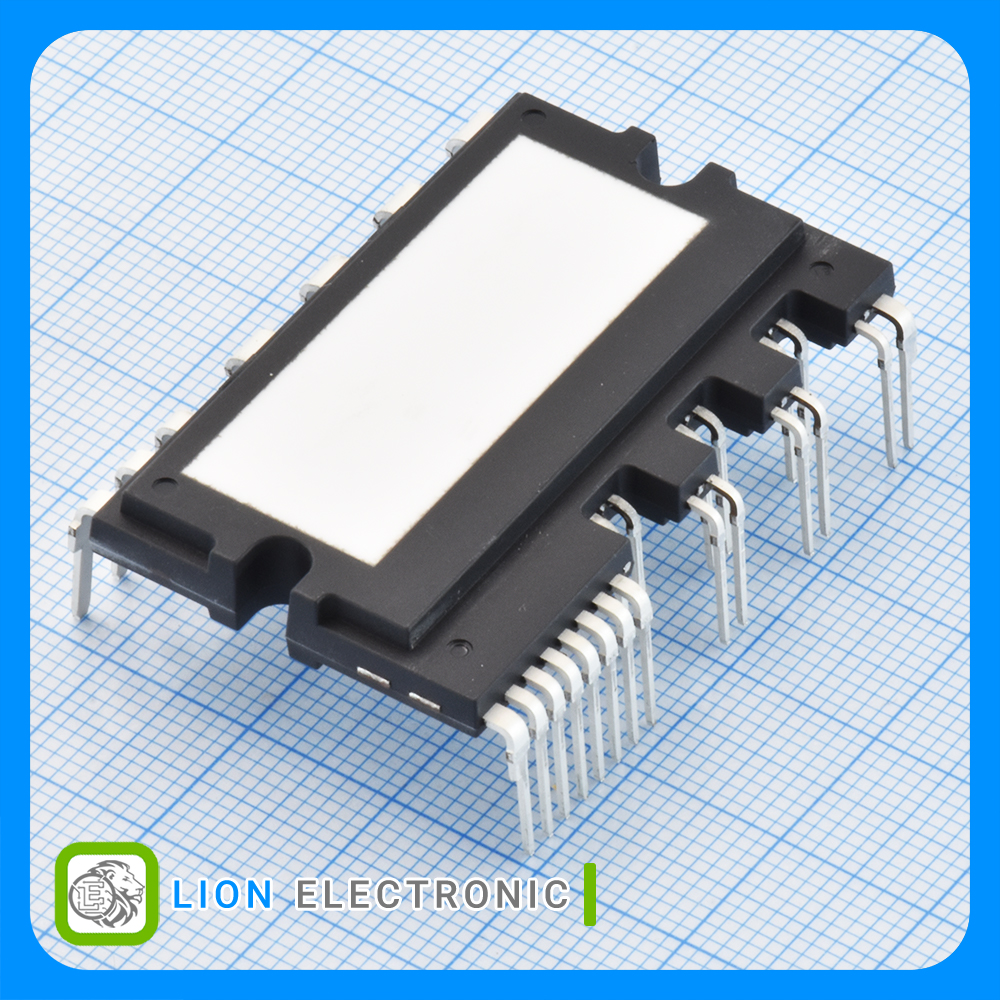

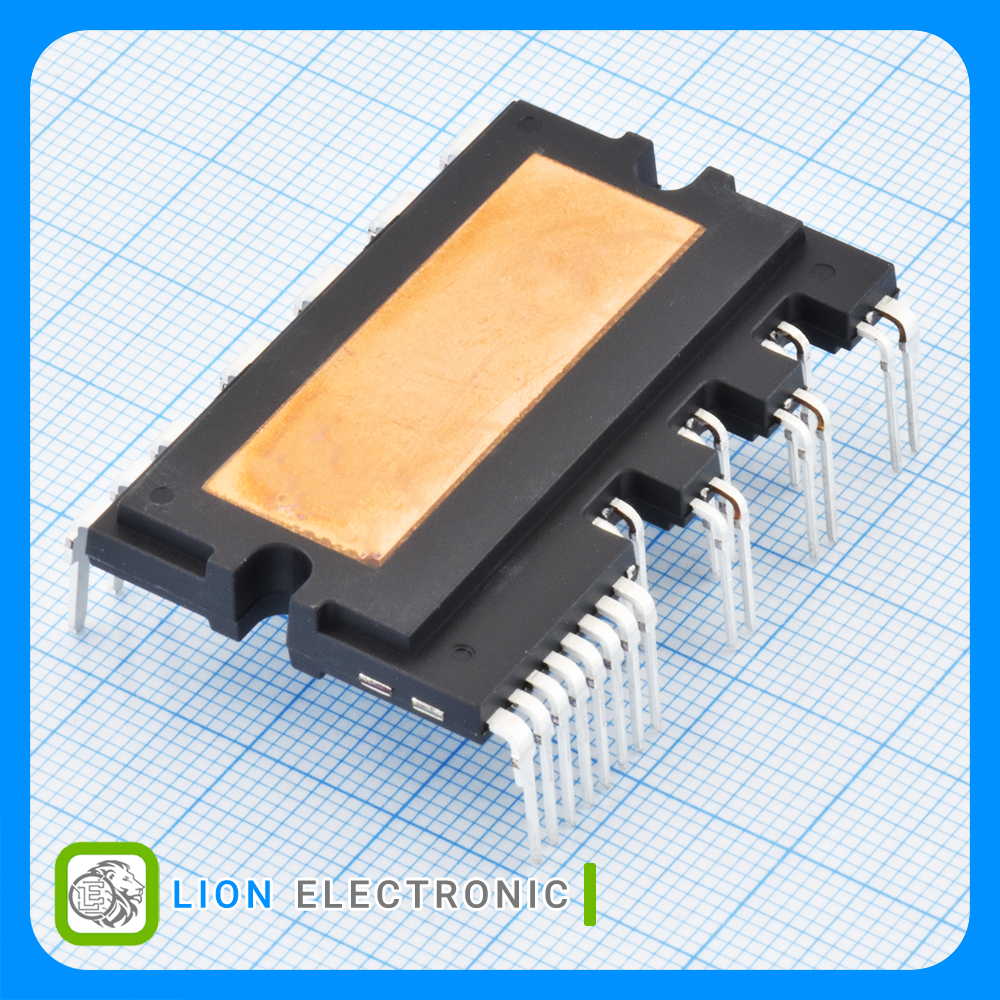

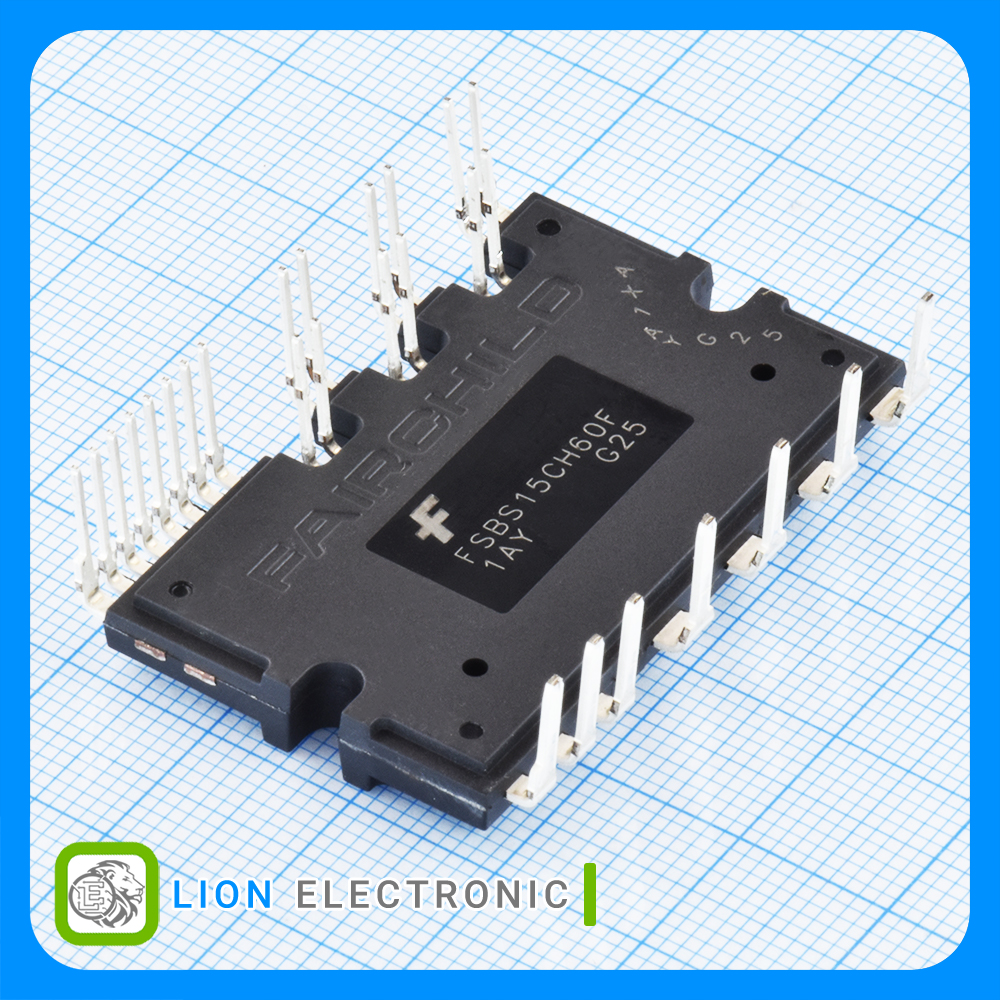

FSBS15CH60F
FSBS15CH60F
Part Number
904
Lion Part
Datasheet
FAIRCHILD/ONSEMI Manufacture
ماژول IGBT سه فاز 600 ولت 15 آمپر به همراه مدارات گیت درایور و محافظ با پکیج SPM27-BA
3-Phase IGBT Inverter Module 600V, 15A with Integral Gate Drivers and Protection, SPM27-BA Package
معرفی
ماژول IGBT سه فاز 600 ولت 15 آمپر به همراه مدارات گیت درایور و محافظ با پکیج SPM27-BA
3-Phase IGBT Inverter Module 600V, 15A with Integral Gate Drivers and Protection, SPM27-BA Package
Specifications
- Product: Fan / Motor Controllers / Drivers
- Configuration: 3-Phase
- Collector - Emitter Voltage VCEO Max: 600V
- Collector - Emitter Saturation Voltage: 2.3V
- Continuous Collector Current aT 25 c: 15A
- Gate - Emitter Leakage Current: 250uA
- Pd - Power Dissipation: 32W
- Package/Case: SPM27-BA
- Minimum Operating Temperature: -20C
- Maximum Operating Temperature: +125C
- Packaging: Tube
مشخصات ماژول IGBT سه فاز FSBS15CH60F

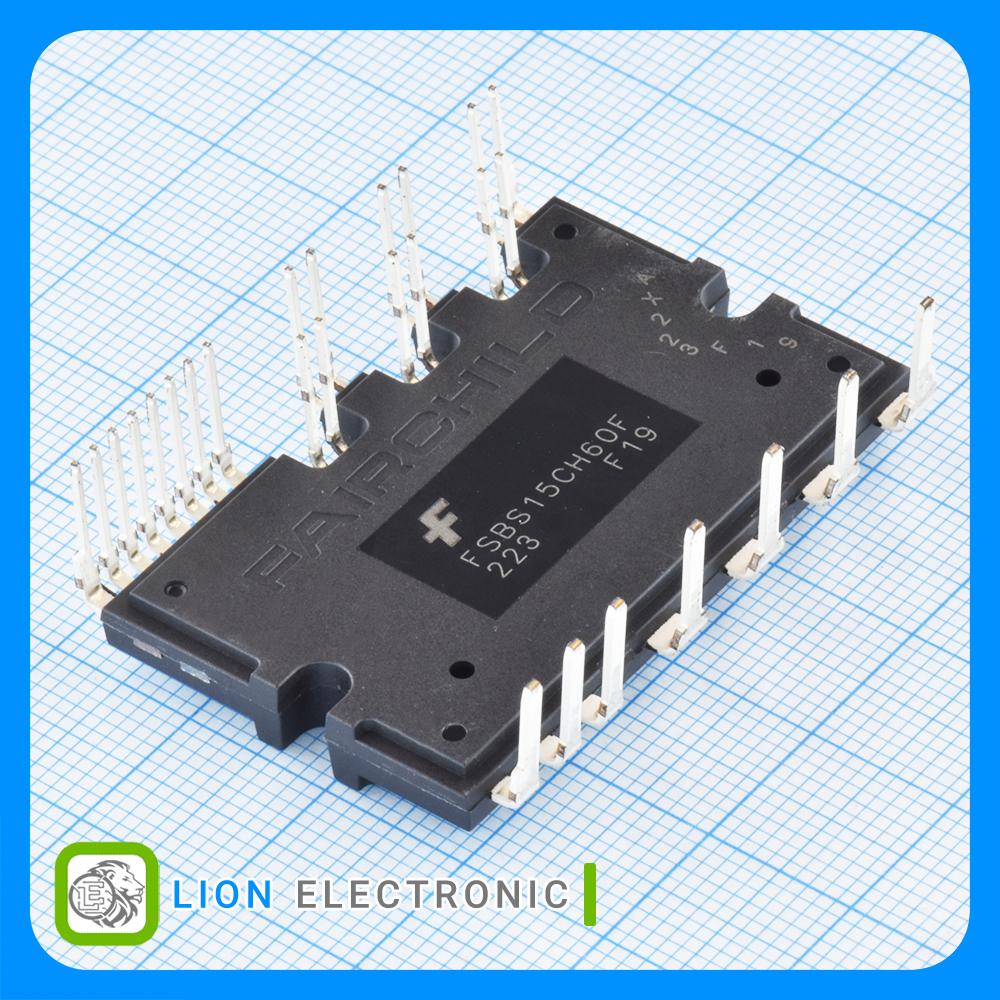

ماژول IGBT سه فاز FSBS15CH60F
Part Number
15A
Continuous Collector Current aT 25 c
250uA
Gate - Emitter Leakage Current
Tube
Packaging
-20C
Minimum Operating Temperature
3-Phase
Configuration
+125C
Maximum Operating Temperature
600V
Collector - Emitter Voltage VCEO Max
2.3V
Collector - Emitter Saturation Voltage
Fan / Motor Controllers / Drivers
Product
32W
Pd - Power Dissipation
SPM27-BA
Package-Case
