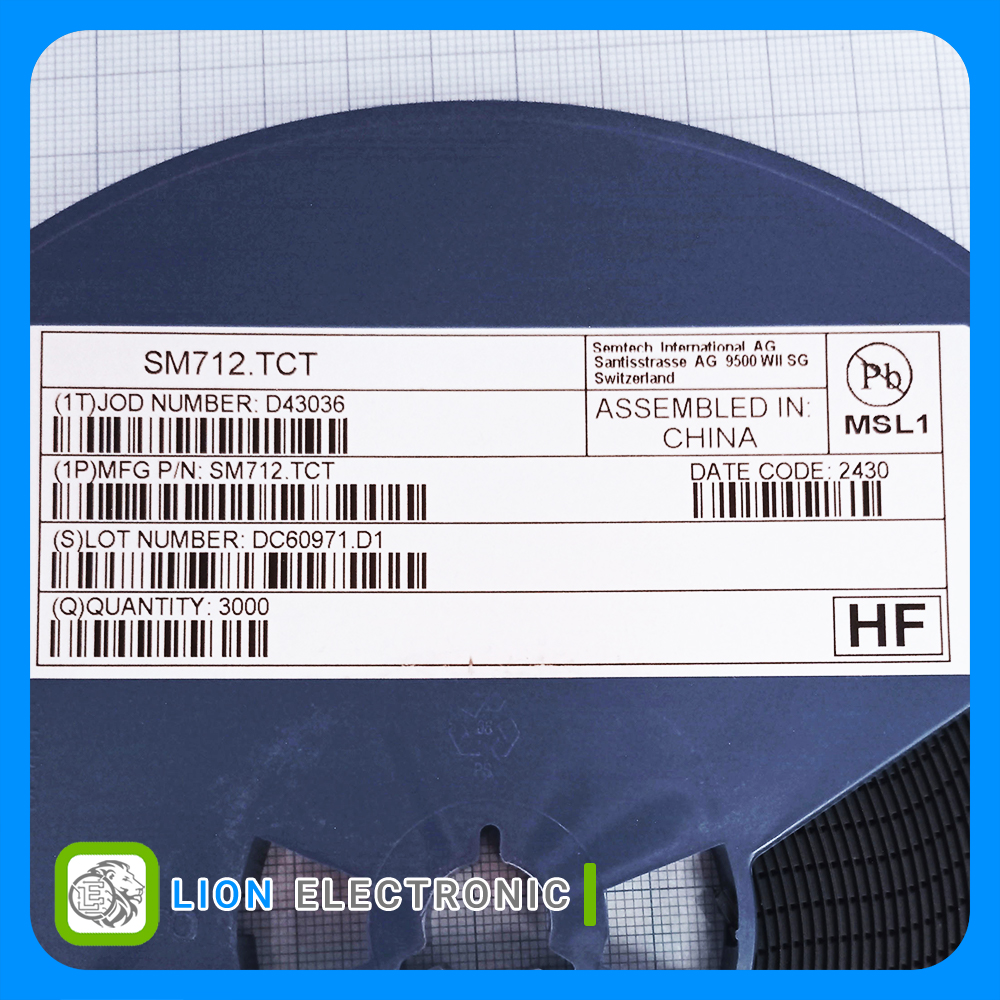

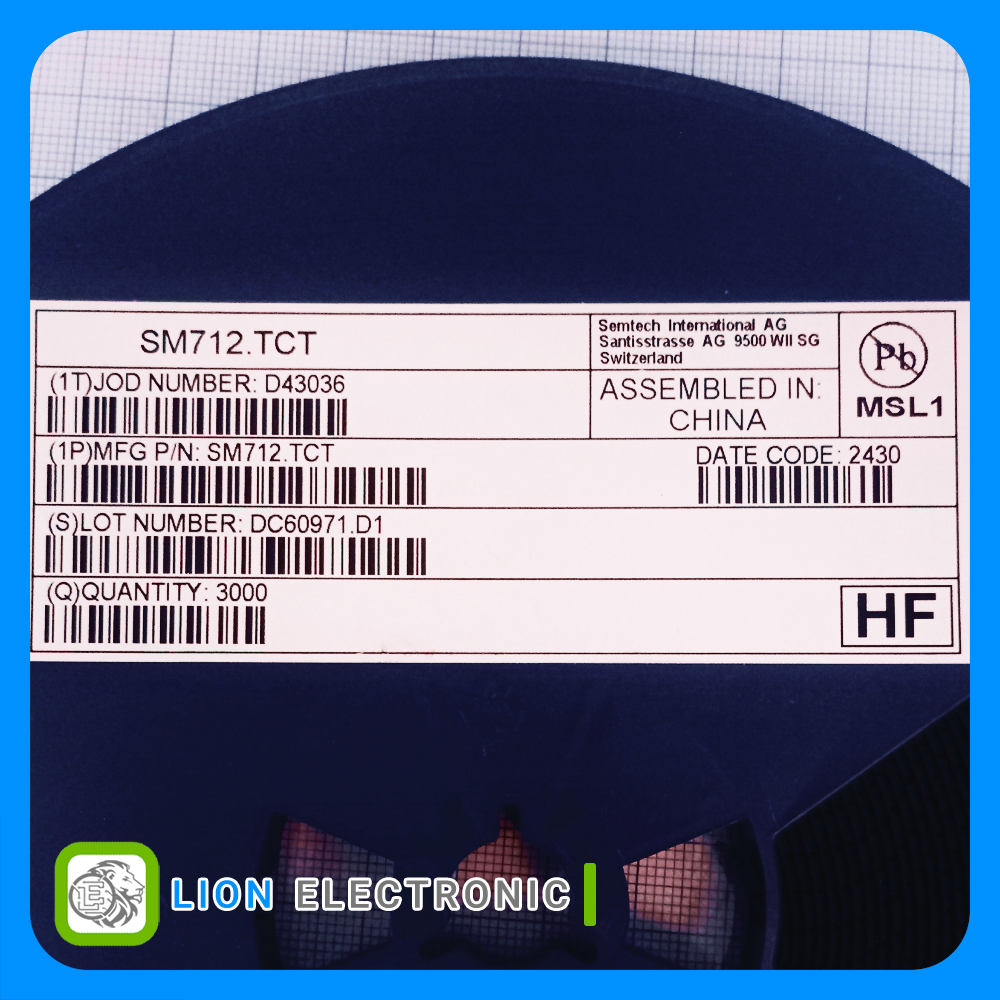

SM712.TCT
SM712.TCT
Part Number
113
Lion Part
Datasheet
Semtech Manufacture
دیود TVS دارای دو شاخه (در هر شاخه یک دیود 12 ویک دیود 7 ولت) 21 و 38 آمپر به نسبت جهت جریان برای محافظت RS-485 با پکیج SOT-23
The SM712 Transient Voltage Suppressor (TVS) Diode is Designed for Asymmetrical (12V to -7V) Protection in Multi-point Data Transmission Standard RS-485 Applications.
مشخصات SM712.TCT
SM712.TCT
Part Number
Bidirectional
Polarity
2
Number of Channels
-55C
Minimum Operating Temperature
30kV
Vesd - Voltage ESD Air Gap
30kV
Vesd - Voltage ESD Contact
Reel
Packaging
SMD/SMT
Termination style
400W
Pppm - Peak Pulse Power Dissipation
+125C
Maximum Operating Temperature
12V
Working Voltage
ESD Suppressors
Product Type
75pF
Cd - Diode Capacitance
26V
Clamping Voltage
13.3V
Breakdown Voltage
21A
Ipp - Peak Pulse Current

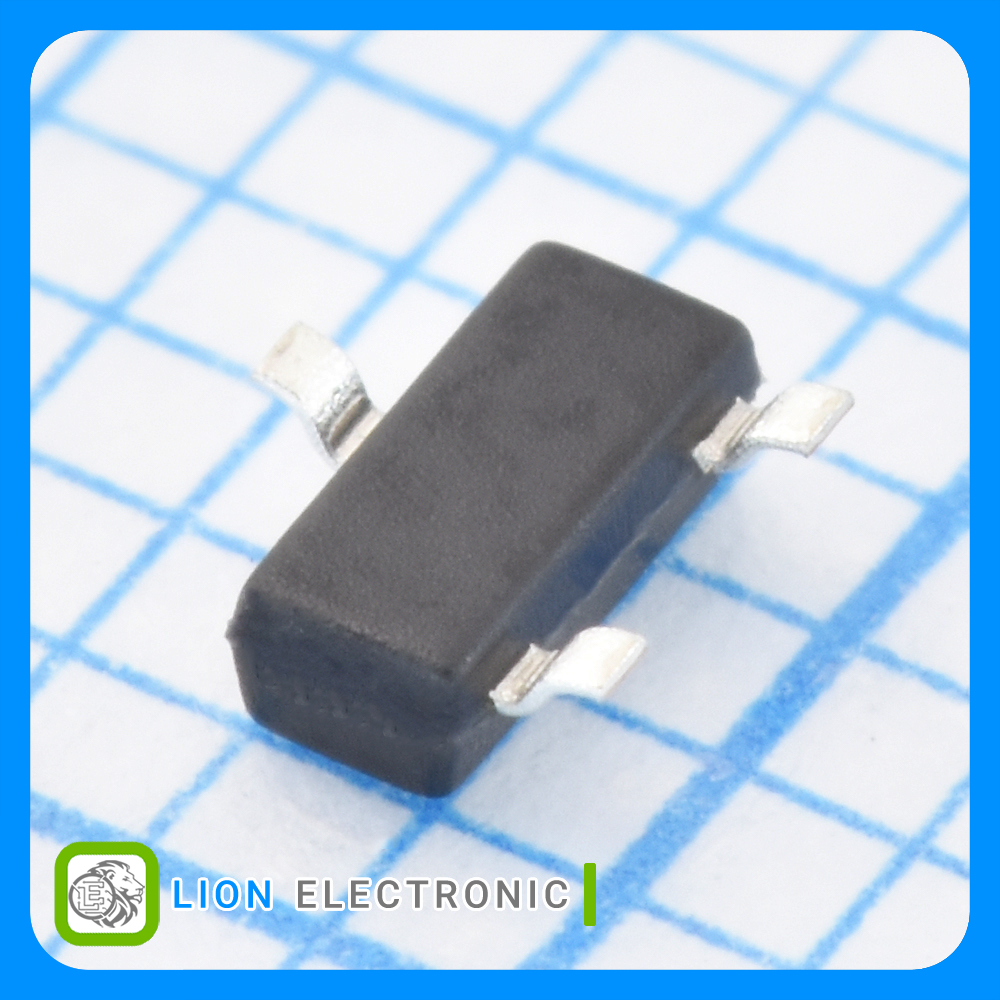

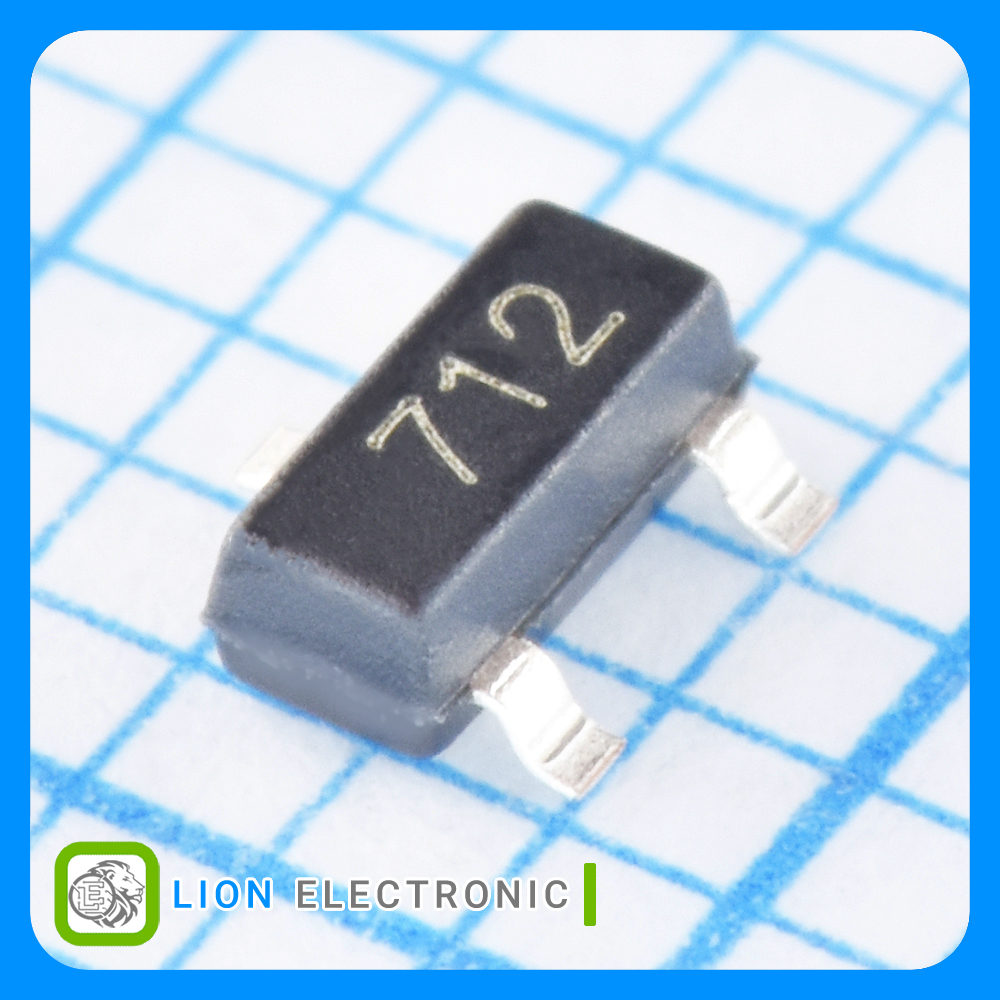

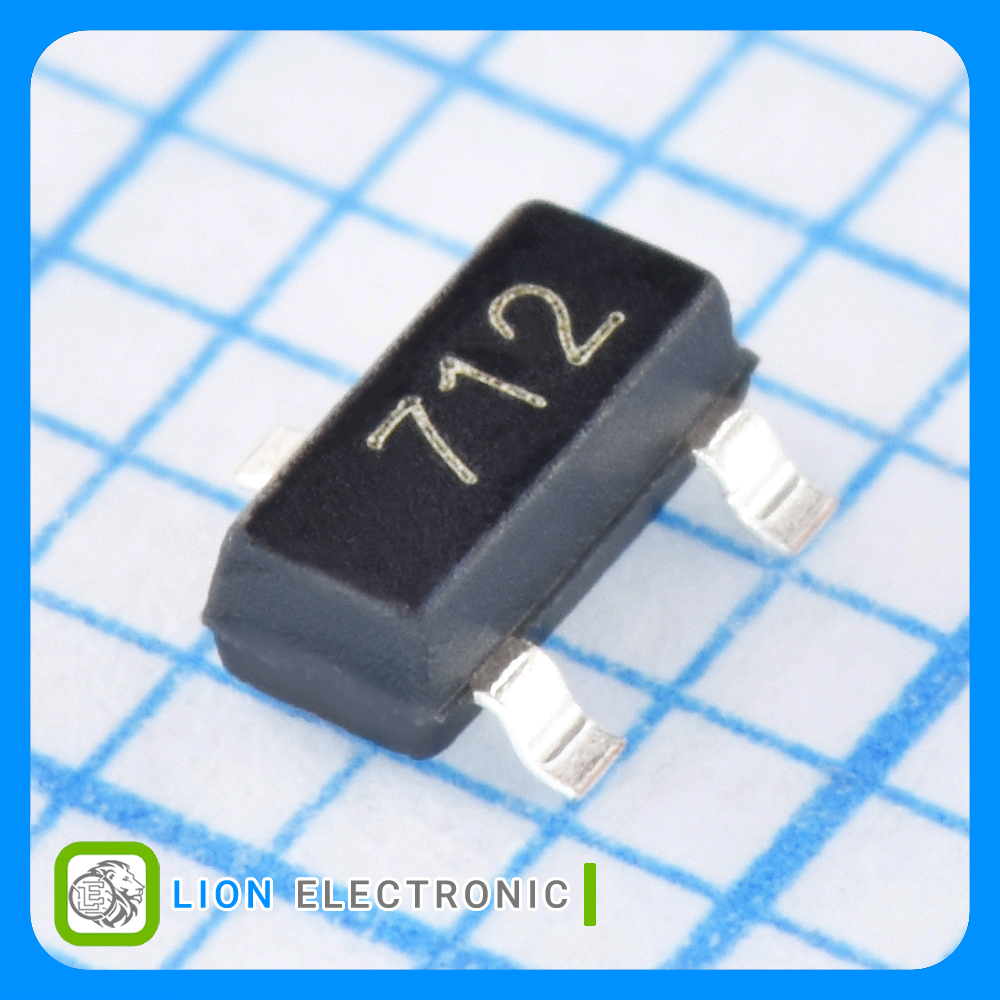

SOT-23-3
Package-Case
