VBsemi
معرفی
ماسفت 30 ولت 13 آمپر نوع N-CH با پکیج SOIC-8
N-CH MOSFET 30V, 13A with SOIC-8 Package
Specifications
- Package/Case: SOIC-8
- Vds - Drain - Source Breakdown Voltage: 30V
- Id - Continuous Drain Current: 13A
- Transistor Polarity: N-Channel
- Channel Mode: Enhancement
- Number of Channels: 1
- Vgs th - Gate - Source Threshold Voltage: 1V
- Vgs - Gate - Source Voltage: ±20V
- Rds On - Drain - Source Resistance: 8mΩ
- Pd - Power Dissipation: 4.1W
- Qg - Gate Charge: 15nC
- Mounting Style: SMD/SMT
- Minimum Operating Temperature: -55C
- Maximum Operating Temperature: +150C
- Packaging: Reel
مشخصات IRF7821TRPBF-VB

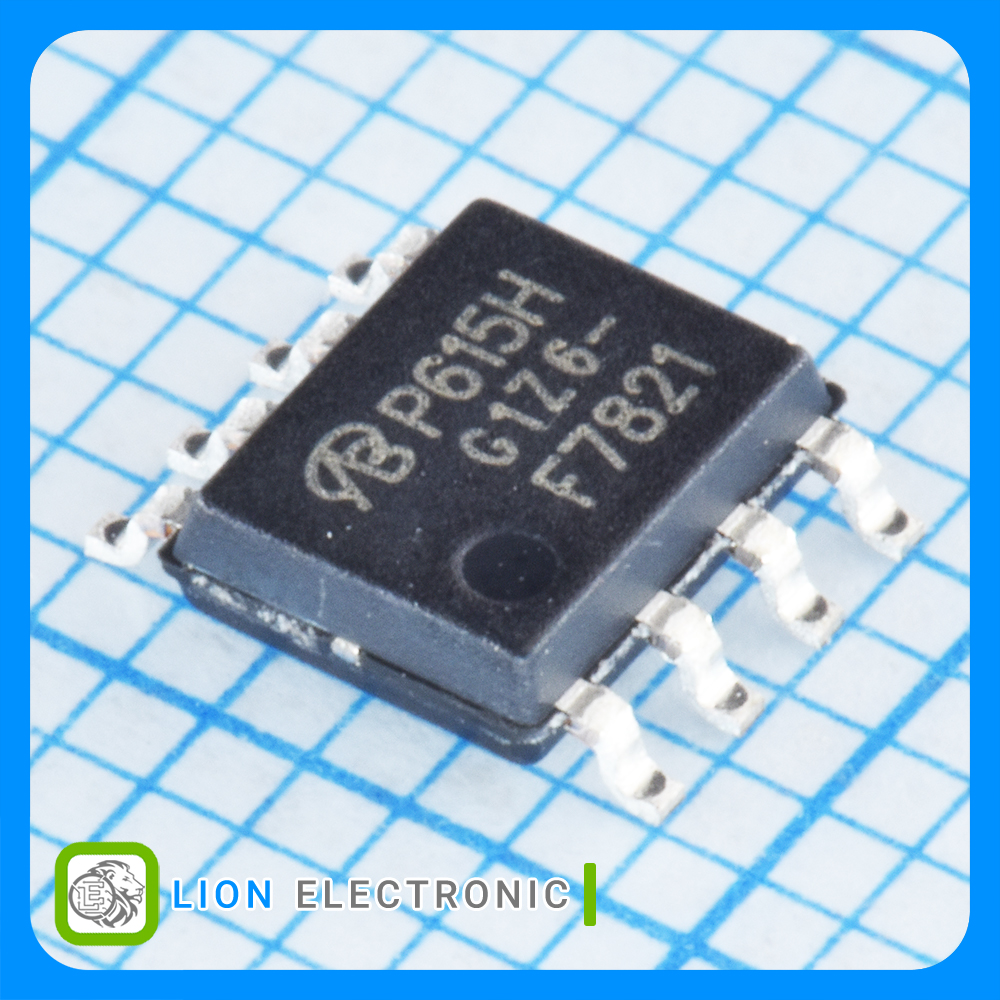

IRF7821TRPBF-VB
Part Number
1
Number of Channels
Enhancement
Channel Mode
-55C
Minimum Operating Temperature
Reel
Packaging
SMD/SMT
Mounting Style
±20V
Vgs - Gate - Source Voltage
30V
Vds - Drain - Source Breakdown Voltage
+150C
Maximum Operating Temperature
1V
Vgs th - Gate - Source Threshold Voltage
8mΩ
Rds On - Drain - Source Resistance
15nC
Qg - Gate Charge
4.1W
Pd - Power Dissipation
13A
Id - Continuous Drain Current
SOIC-8
Package-Case
