VBsemi
معرفی

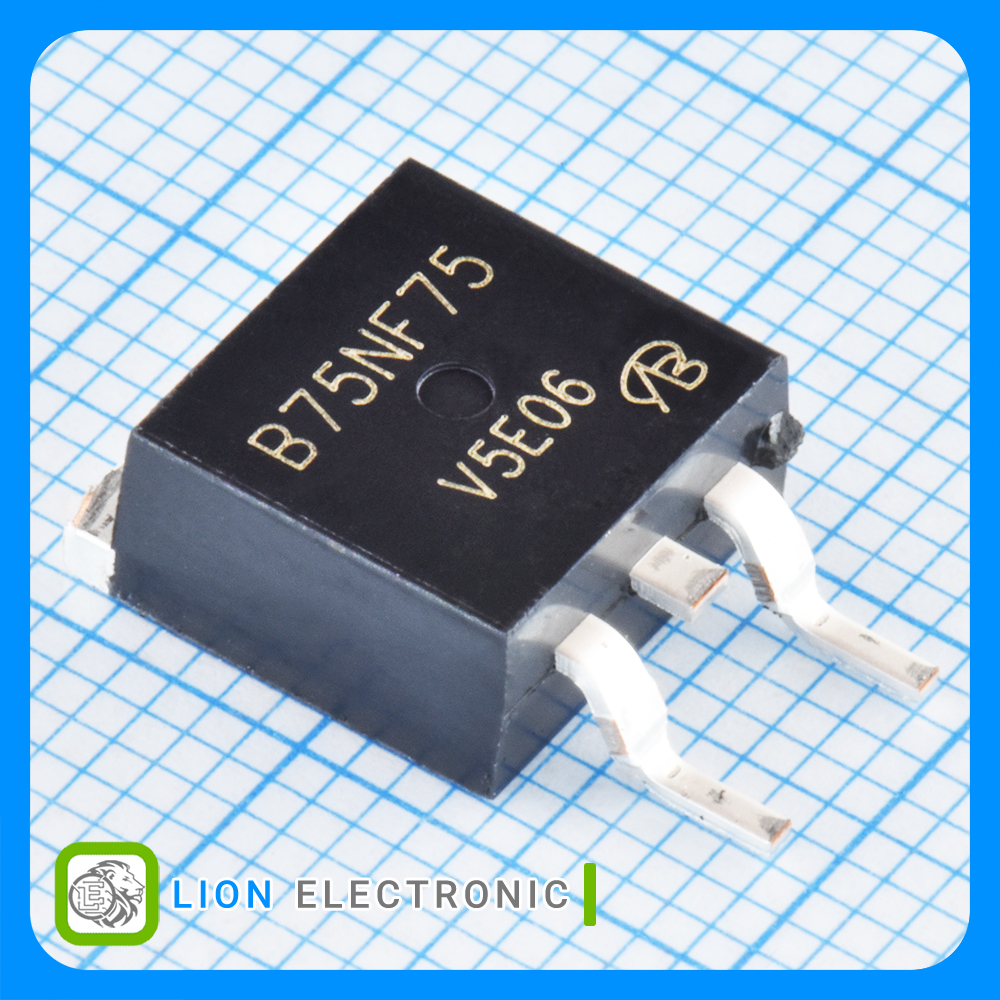

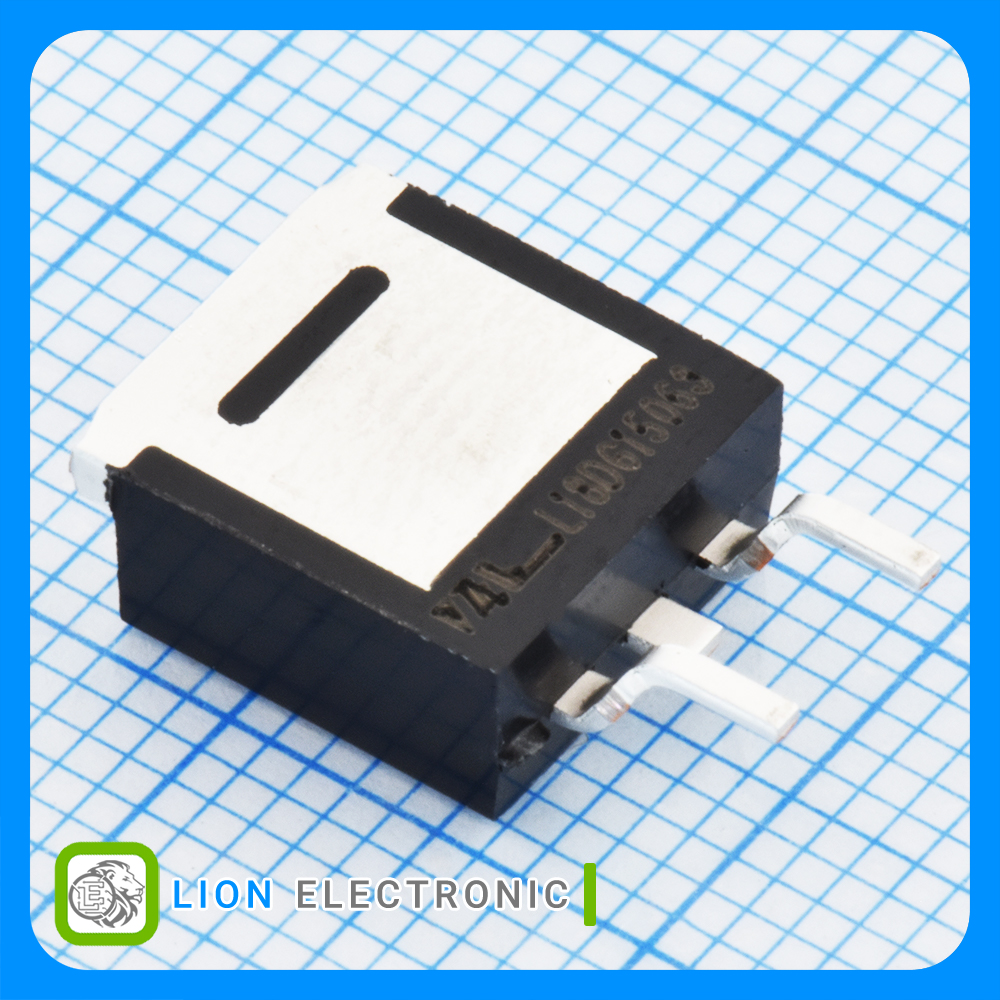

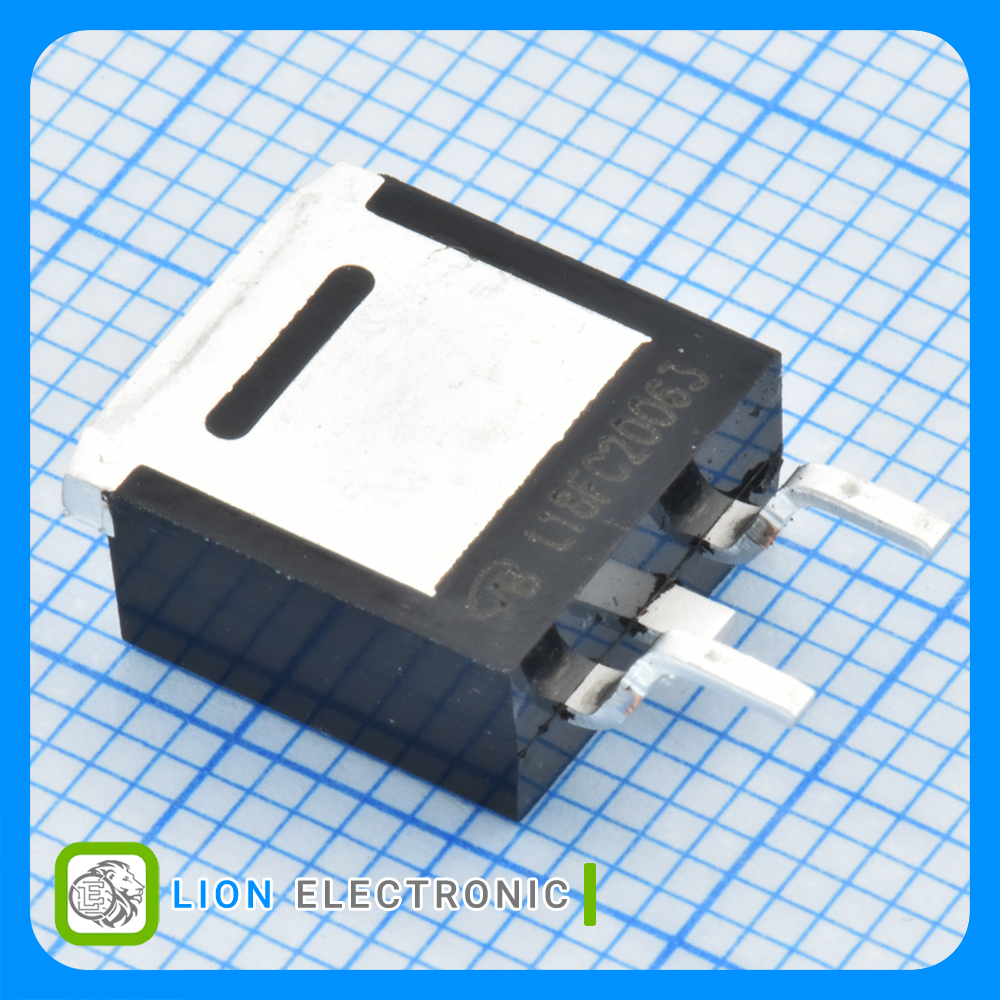

ماسفت 80 ولت 120 آمپر نوع N با پکیج TO-263(D2PAK)
N-CH MOSFET 80V, 120A with TO-263(D2PAK) Package
Specifications
- Package/Case: TO-263
- Vds - Drain - Source Breakdown Voltage: 80V
- Id - Continuous Drain Current: 120A
- Transistor Polarity: N-Channel
- Channel Mode: Enhancement
- Number of Channels: 1
- Vgs th - Gate - Source Threshold Voltage: 2.5V
- Vgs - Gate - Source Voltage: ±20V
- Rds On - Drain - Source Resistance: 6mΩ
- Pd - Power Dissipation: 370W
- Qg - Gate Charge: 53.5nC
- Mounting Style: SMD/SMT
- Minimum Operating Temperature: -55C
- Maximum Operating Temperature: +175C
- Packaging: Tube
مشخصات STB75NF75T4-VB

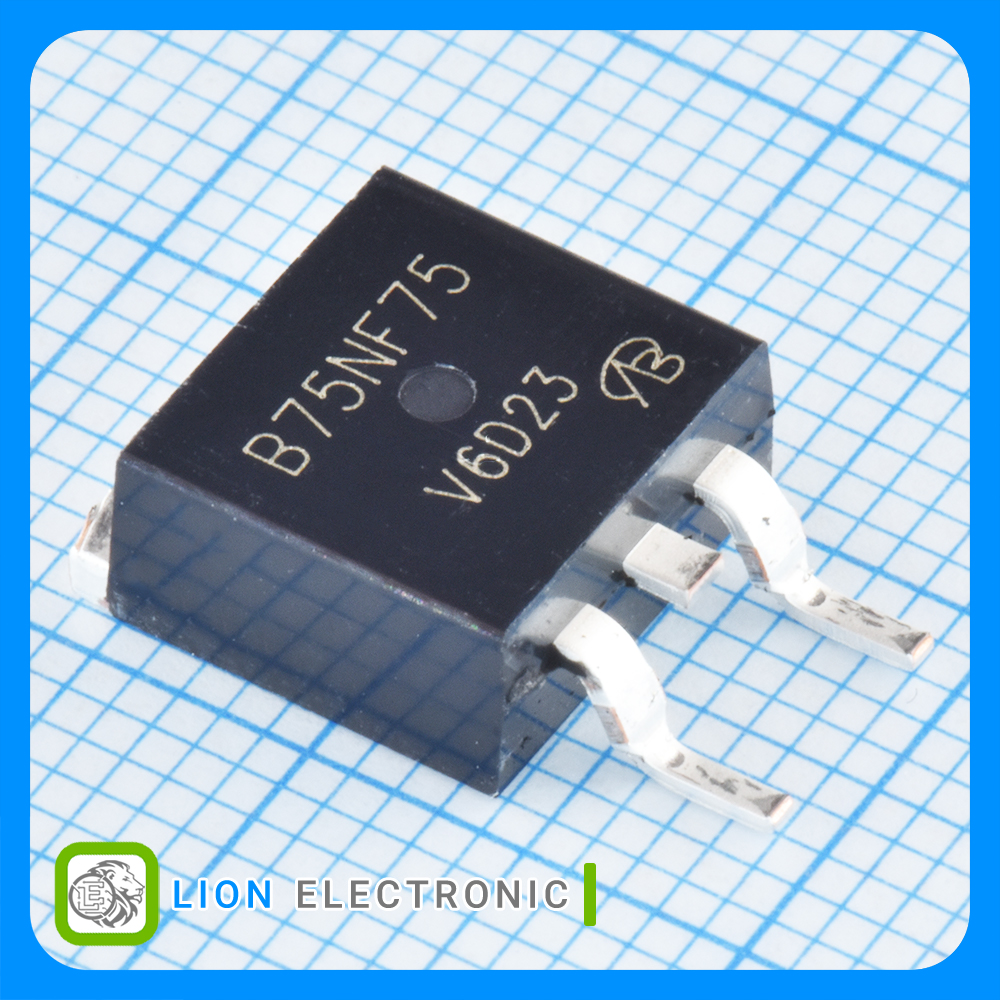

STB75NF75T4-VB
Part Number
1
Number of Channels
Enhancement
Channel Mode
-55C
Minimum Operating Temperature
Tube
Packaging
SMD/SMT
Mounting Style
±20V
Vgs - Gate - Source Voltage
80V
Vds - Drain - Source Breakdown Voltage
+175C
Maximum Operating Temperature
6mΩ
Rds On - Drain - Source Resistance
2.5V
Vgs th - Gate - Source Threshold Voltage
53.5nC
Qg - Gate Charge
D2PAK
Package-Case
120A
Id - Continuous Drain Current
370W
Pd - Power Dissipation
