IXYS
معرفی

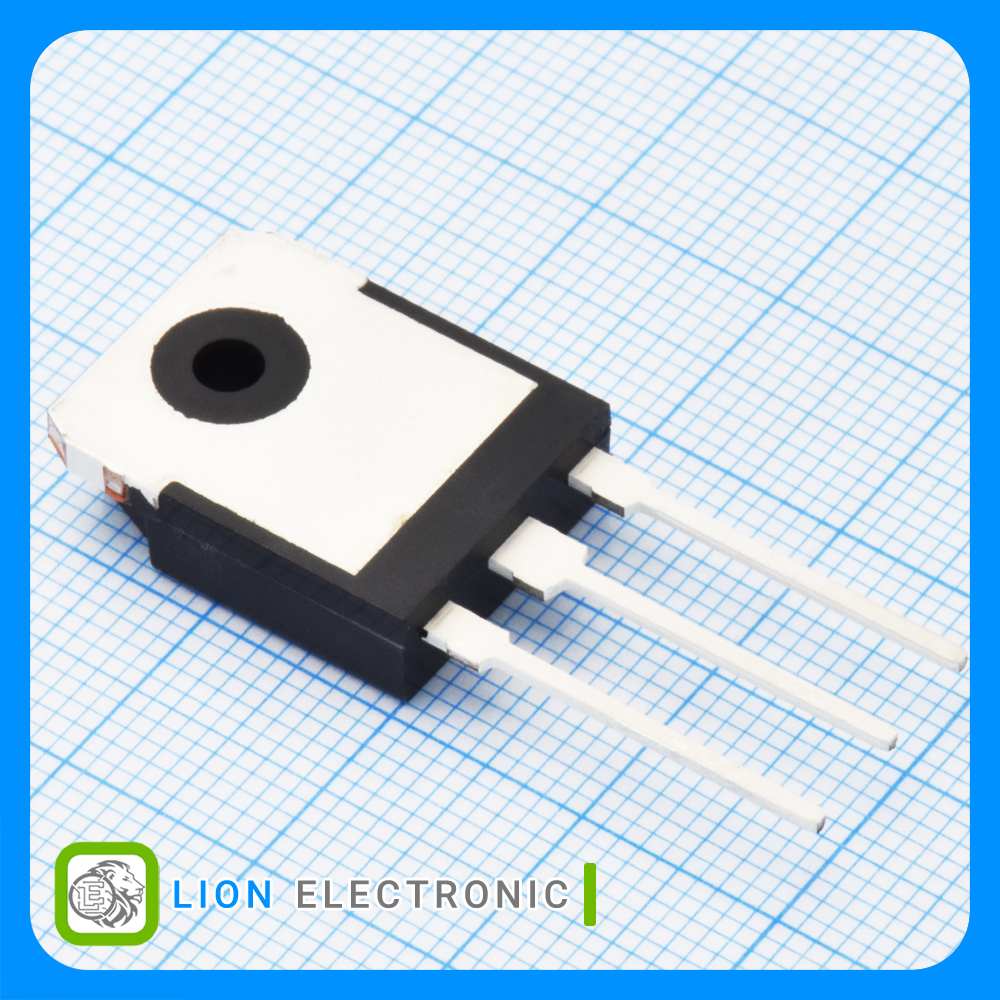

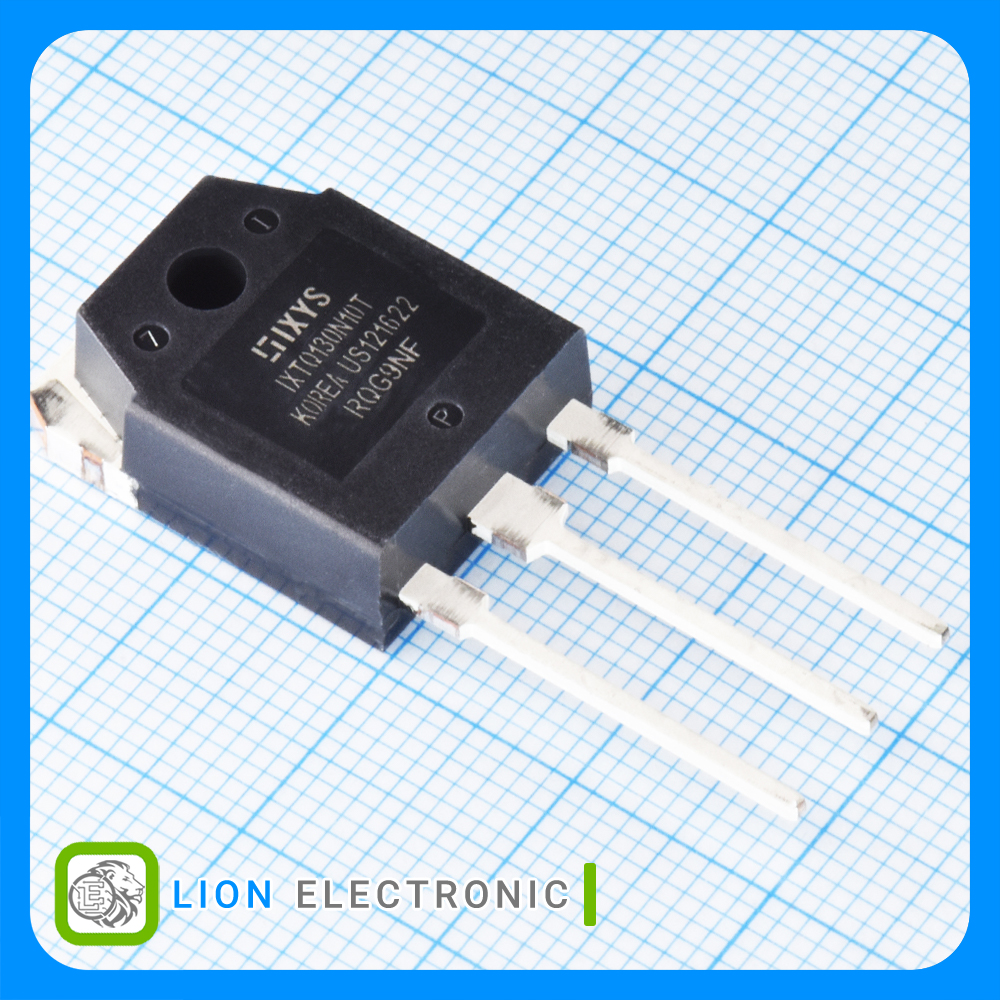

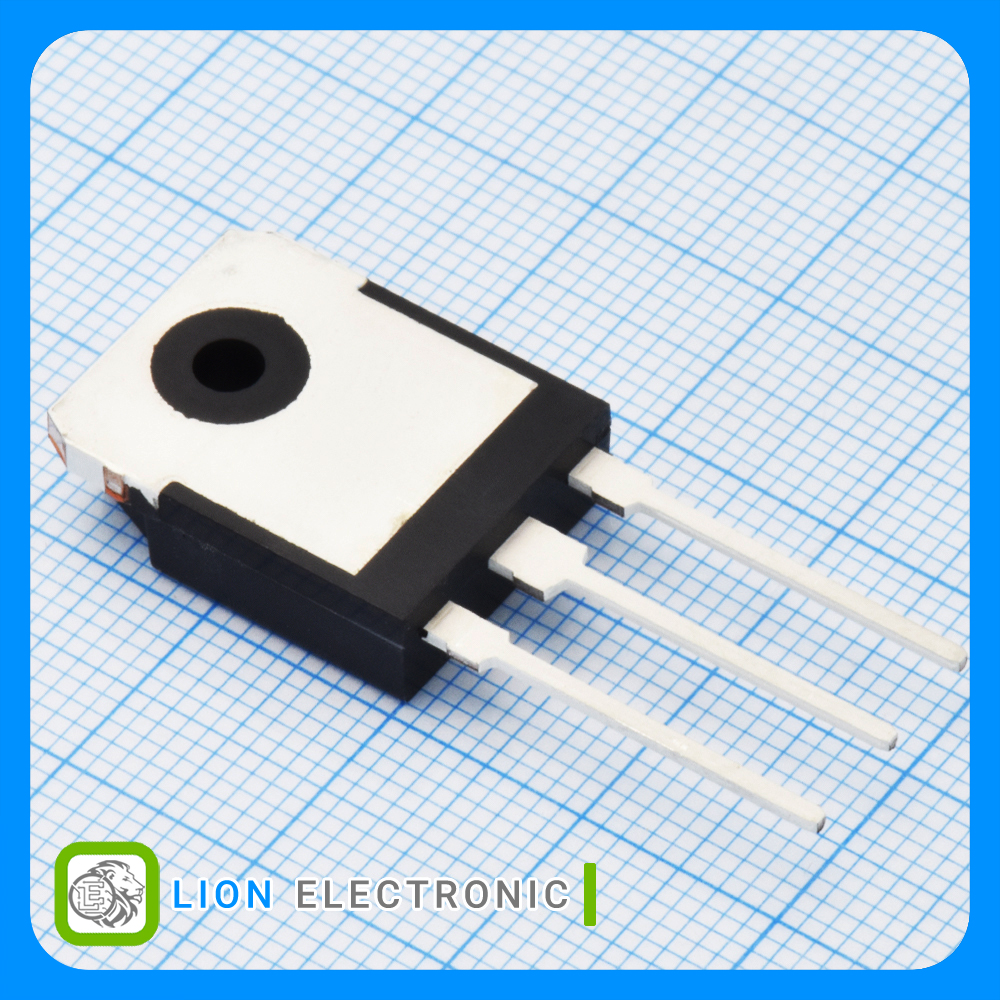

ماسفت 100 ولت 130 آمپر نوع N با پکیج TO-3PN-3
N-CH MOSFET 100V, 130A with TO-3PN-3 Package
Specifications
- Package/Case: TO-3P
- Vds - Drain - Source Breakdown Voltage: 100V
- Id - Continuous Drain Current: 130A
- Transistor Polarity: N-Channel
- Channel Mode: Enhancement
- Number of Channels: 1
- Vgs th - Gate - Source Threshold Voltage: 2.5V
- Vgs - Gate - Source Voltage: ±20V
- Rds On - Drain - Source Resistance: 9.1mΩ
- Pd - Power Dissipation: 360W
- Qg - Gate Charge: 104nC
- Mounting Style: Through Hole
- Minimum Operating Temperature: -55C
- Maximum Operating Temperature: +175C
- Packaging: Tube
مشخصات ماسفت IXTQ130N10T

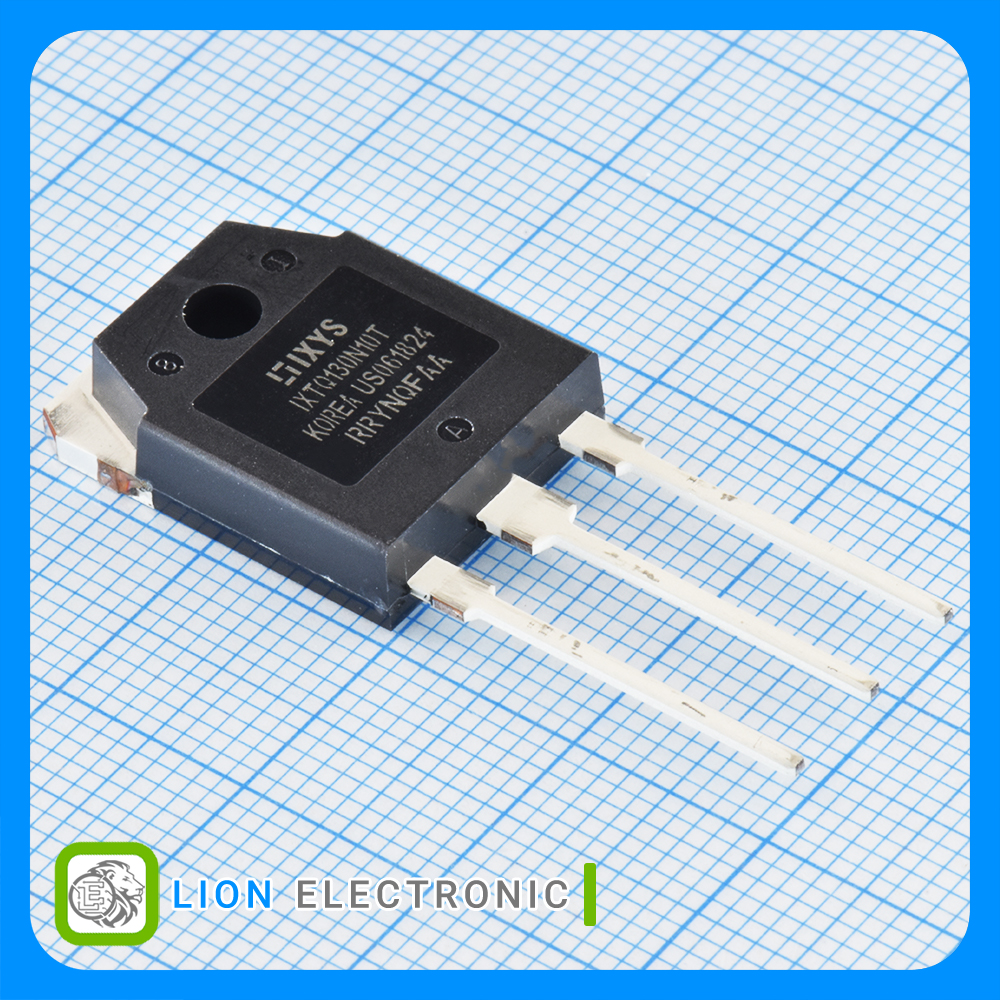

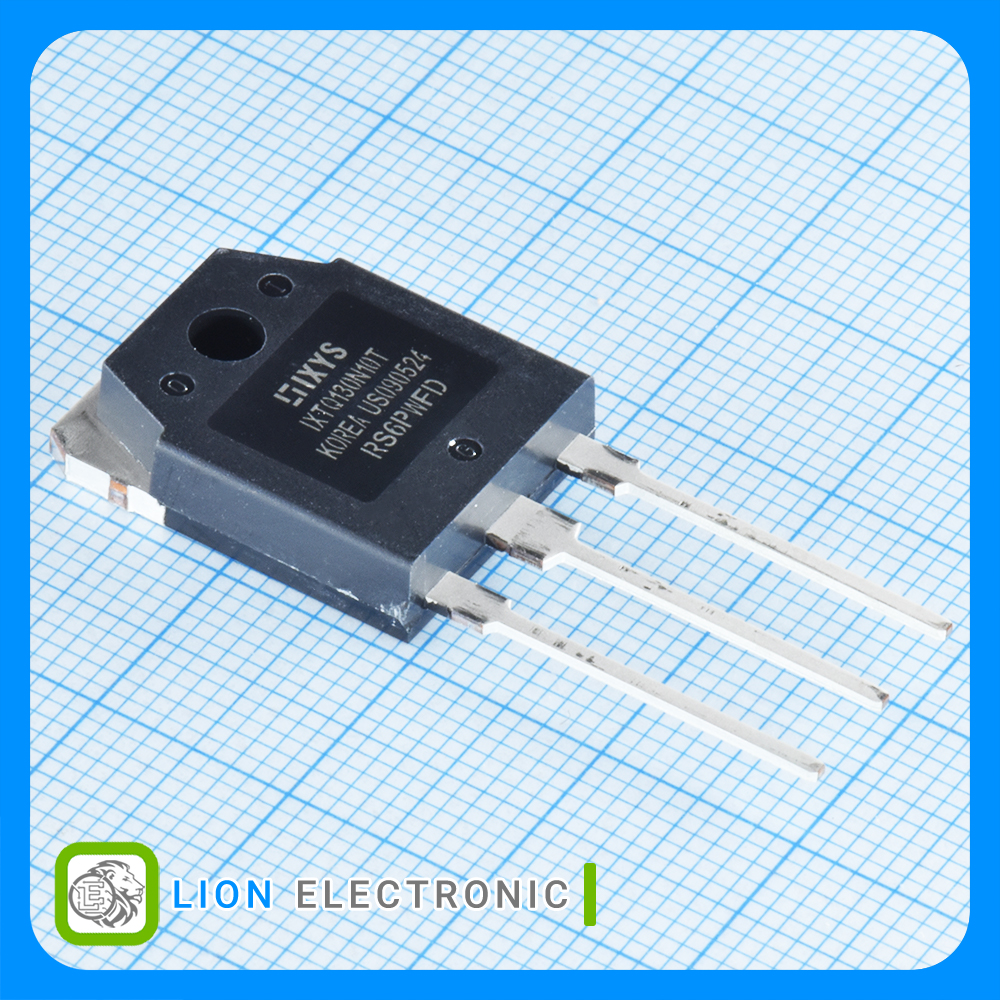

ماسفت IXTQ130N10T
Part Number
1
Number of Channels
Enhancement
Channel Mode
-55C
Minimum Operating Temperature
Tube
Packaging
Through Hole
Mounting Style
±20V
Vgs - Gate - Source Voltage
28ns
Rise Time
+175C
Maximum Operating Temperature
100V
Vds - Drain - Source Breakdown Voltage
47ns
Fall Time
2.5V
Vgs th - Gate - Source Threshold Voltage
9.1mΩ
Rds On - Drain - Source Resistance
104nC
Qg - Gate Charge
130A
Id - Continuous Drain Current
360W
Pd - Power Dissipation
TO-3P
Package-Case
