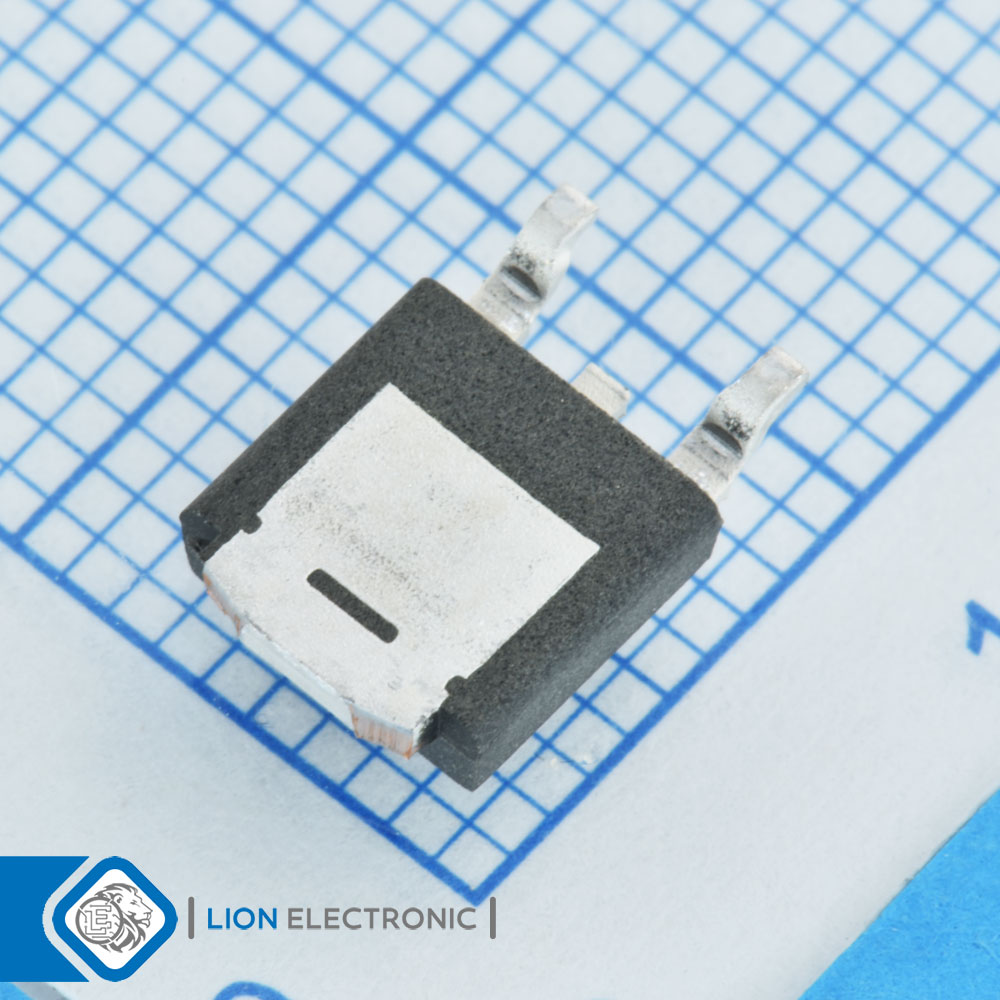

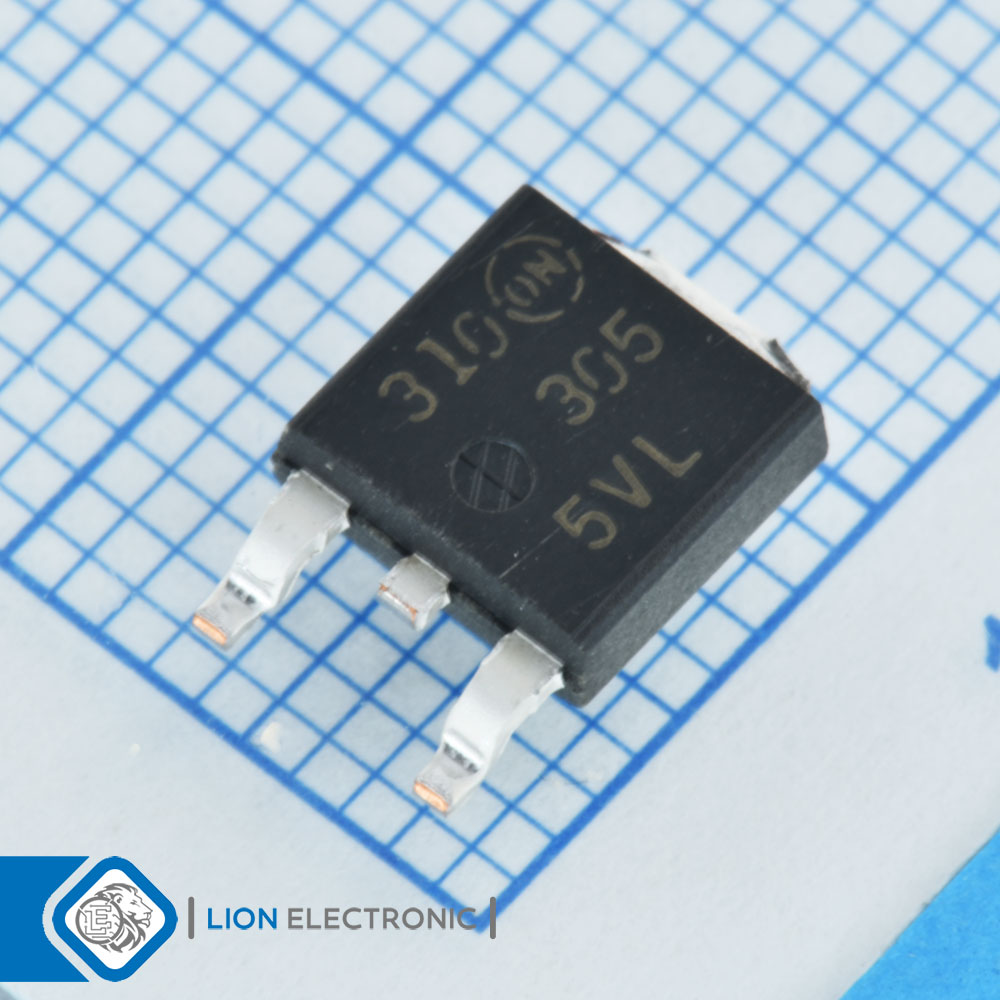

ماسفت MTD3055VLT4
MTD3055VLT4
Part Number
231
Lion Part
Datasheet
ON Semiconductor Manufacture
ماسفت 60 ولت 12 آمپر نوع N با پکیج TO-252-3
N-CH MOS 60V 12A TO-252-3
مشخصات ماسفت MTD3055VLT4
ماسفت MTD3055VLT4
Part Number
1
Number of Channels
Enhancement
Channel Mode
N-Channel
Transistor Polarity
-55C
Minimum Operating Temperature
Reel
Packaging
SMD/SMT
Mounting Style
±15V
Vgs - Gate - Source Voltage
60V
Vds - Drain - Source Breakdown Voltage
+175C
Maximum Operating Temperature
8.1nC
Qg - Gate Charge
1V
Vgs th - Gate - Source Threshold Voltage
85ns
Rise Time
43ns
Fall Time
12A
Id - Continuous Drain Current
DPAK
Package-Case
48W
Pd - Power Dissipation
120mΩ
Rds On - Drain - Source Resistance
