VBsemi
معرفی

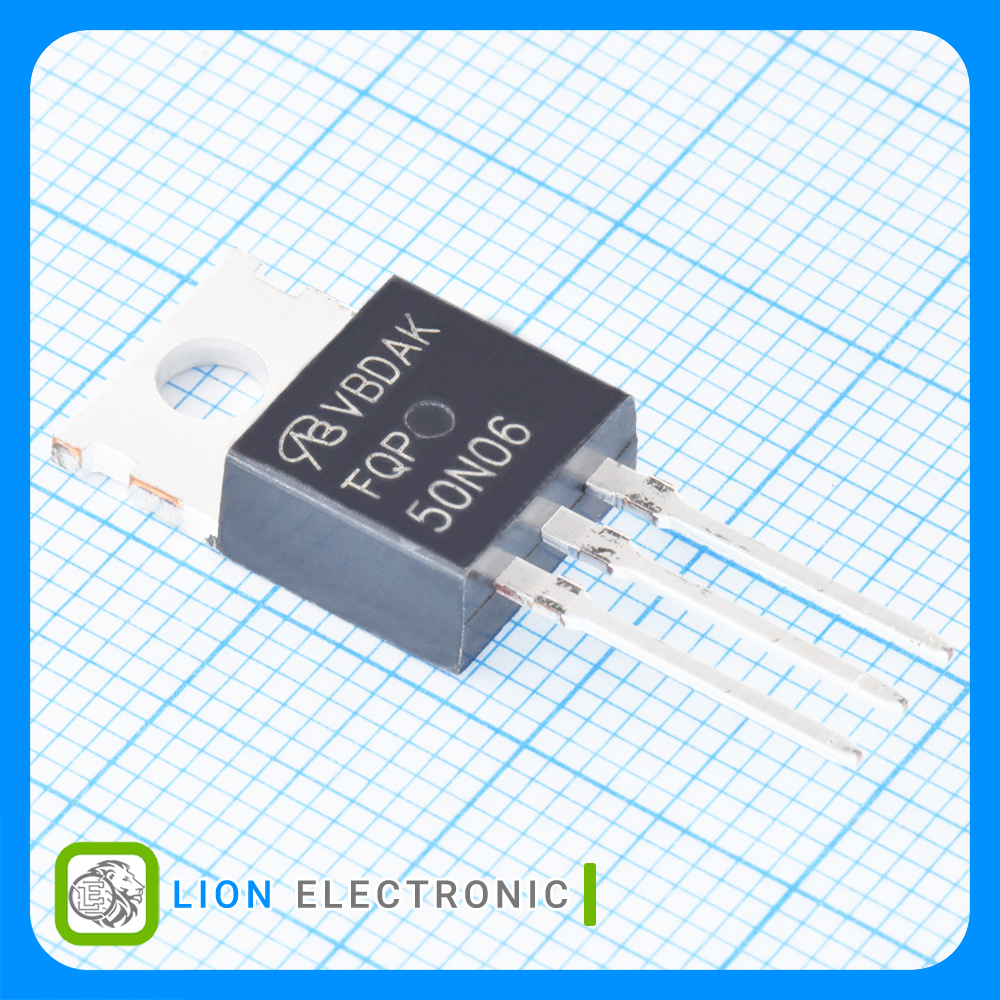

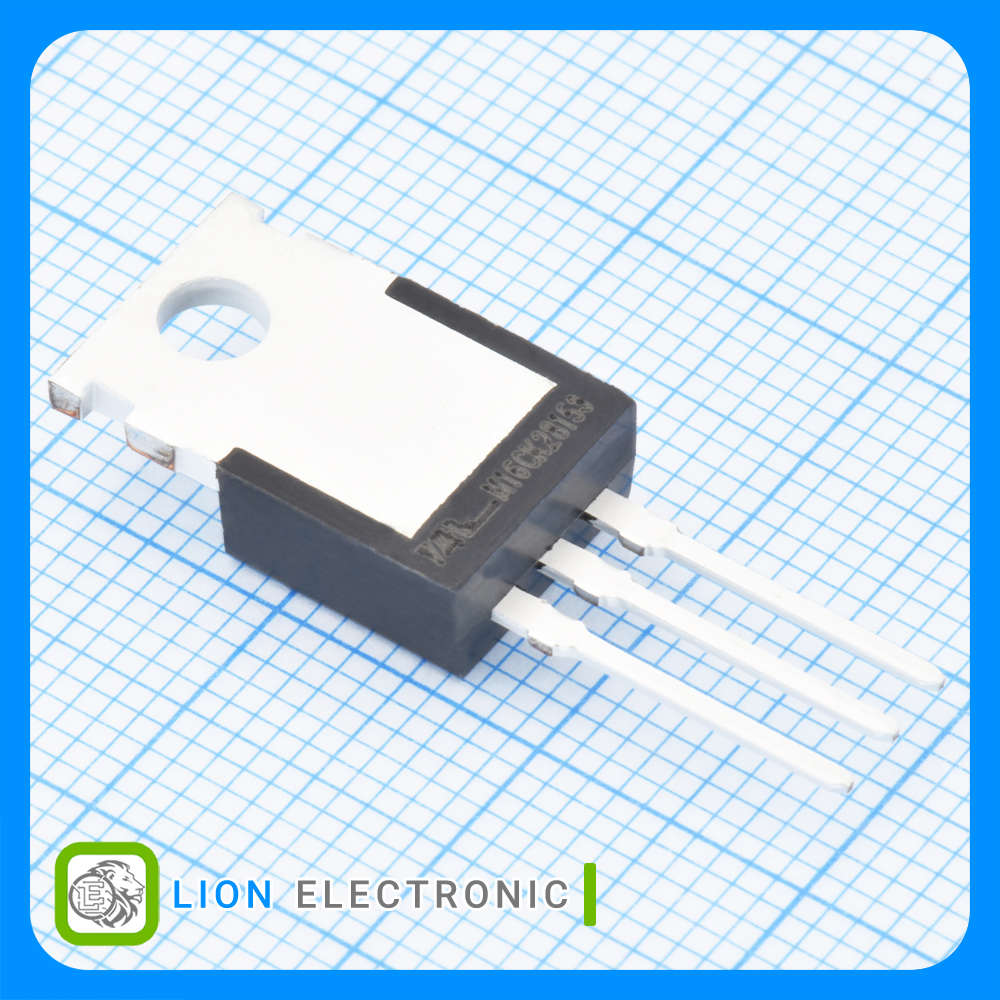

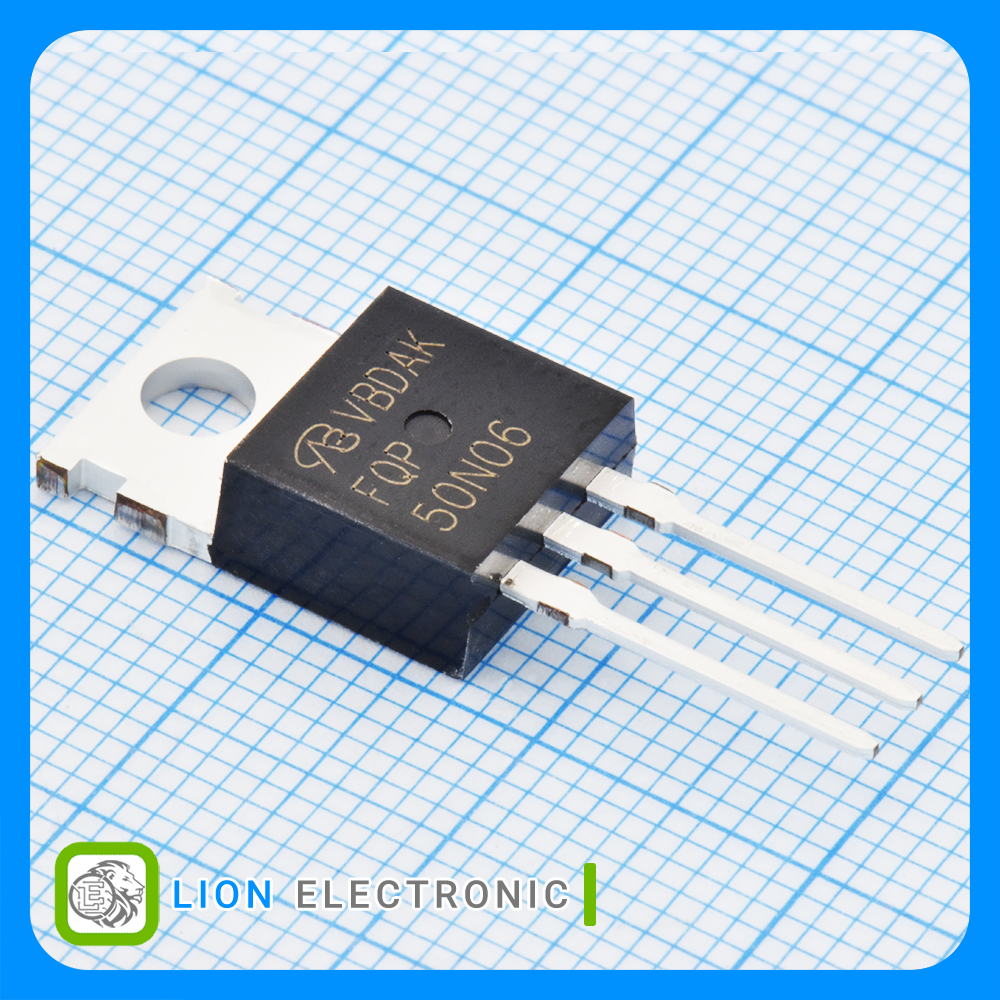

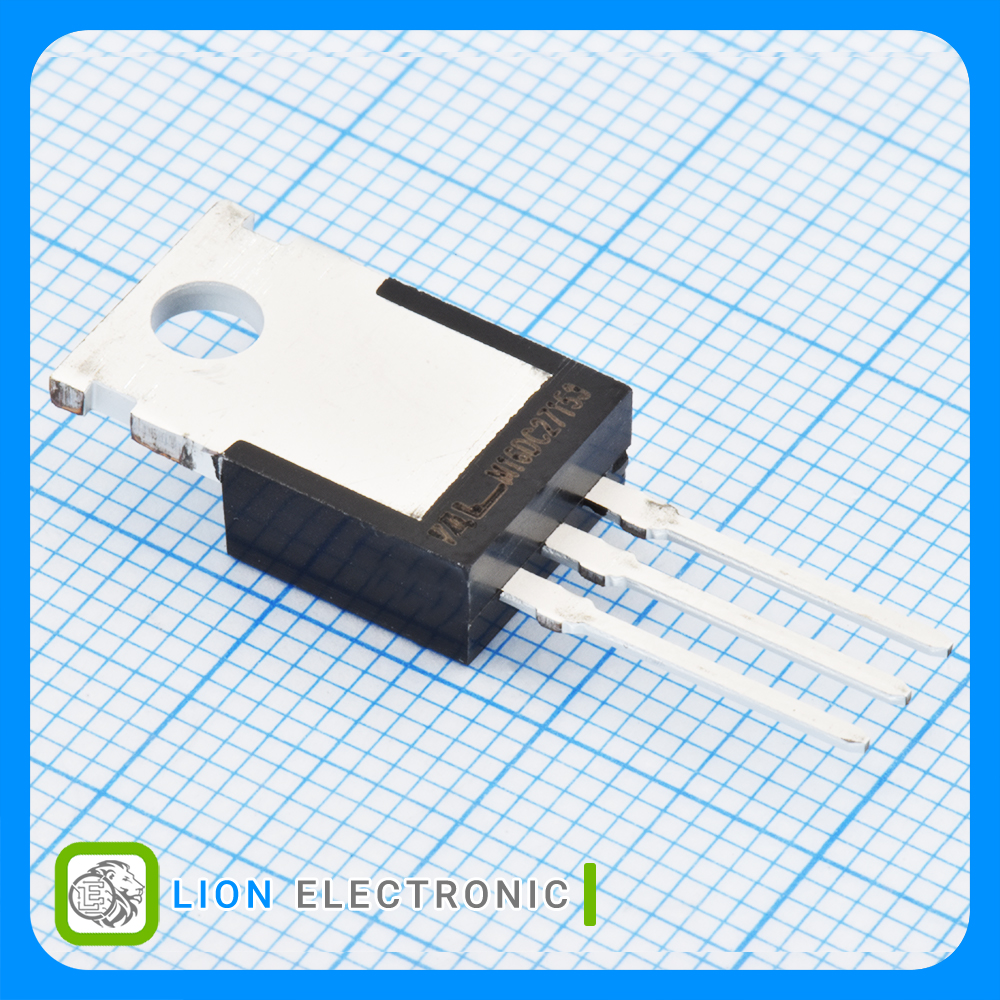

ماسفت N-CH با ولتاژ 60 ولت و جریان 60 آمپر نوع N با پکیج TO-220-3
N-CH MOSFET 60V, 60A with TO-220-3 Package
Specifications
- Package/Case: TO-220-3
- Vds - Drain - Source Breakdown Voltage: 60V
- Id - Continuous Drain Current: 60A
- Transistor Polarity: N-Channel
- Channel Mode: Enhancement
- Number of Channels: 1
- Vgs th - Gate - Source Threshold Voltage: 1V
- Vgs - Gate - Source Voltage: ±20V
- Rds On - Drain - Source Resistance: 11mΩ
- Pd - Power Dissipation: 136W
- Qg - Gate Charge: 47nC
- Mounting Style: Through Hole
- Minimum Operating Temperature: -55C
- Maximum Operating Temperature: +175C
- Packaging: Tube
مشخصات ماسفت FQP50N06-VB
ماسفت FQP50N06-VB
Part Number
1
Number of Channels
Enhancement
Channel Mode
-55C
Minimum Operating Temperature
Tube
Packaging
Through Hole
Mounting Style
±20V
Vgs - Gate - Source Voltage
60V
Vds - Drain - Source Breakdown Voltage
+175C
Maximum Operating Temperature
1V
Vgs th - Gate - Source Threshold Voltage
11mΩ
Rds On - Drain - Source Resistance
47nC
Qg - Gate Charge
60A
Id - Continuous Drain Current
136W
Pd - Power Dissipation
TO-220
Package-Case
